50x50x5mm Block Magnets | B-W50H5L50-N35

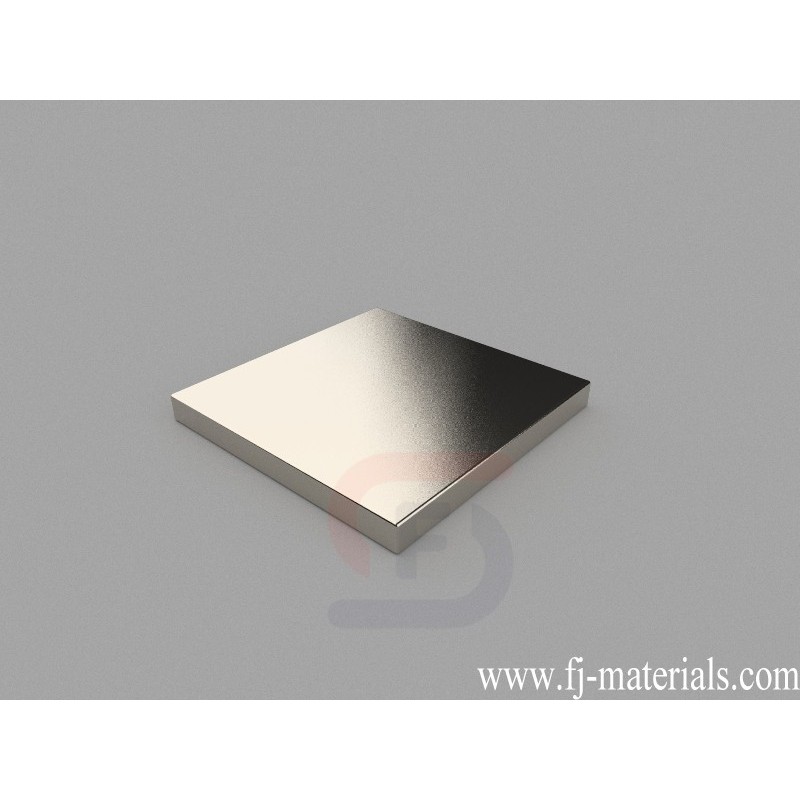

B-W50H5L50-N35 Neodymium Magnet, 50x50x5mm Block Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50x50x5mm, Thru Thickness magnetized. Pull force is approximately 32.91 lbs (14.96kg).
B-W50H5L50-N35 Neodymium Block Magnets is made from high perfermance N35 NdFeB. The dimesion is 50x50x5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 32.91 lbs (14.96kg). Magnetization direction: Through Thickness
B-W50H5L50-N35 Neodymium Magnet, 50x50x5mm Block Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50x50x5mm, Thru Thickness magnetized. Pull force is approximately 32.91 lbs (14.96kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W50H5L50-N35
Data sheet
- Item Number
- B-W50H5L50-N35
- Material
- NdFeB
- Grade
- N35
- Size
- 50x50x5mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 93.750g
- Pull Force
- 32.91 lbs (14.96kg)
- Thickness
- B. 3.18-6.35mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
B-W50H5L50-N35 Neodymium Magnet, 50x50x5mm Block Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 50x50x5mm, Thru Thickness magnetized. Pull force is approximately 32.91 lbs (14.96kg).
