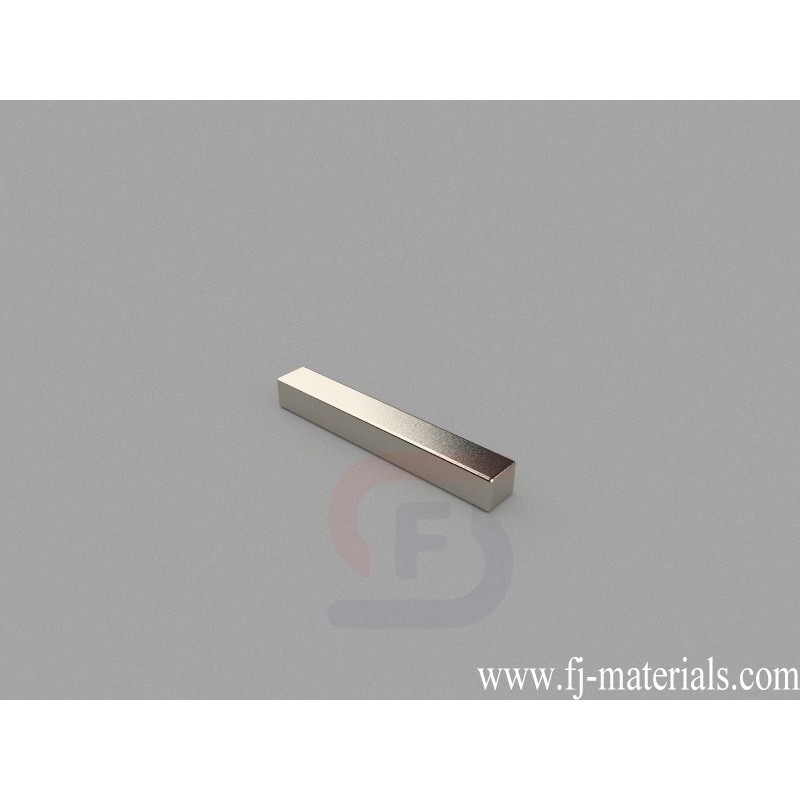

35x5x4.5mm Block Magnets | B-W5H4.5L35-N48M
B-W5H4.5L35-N48M Neodymium Magnet, 35x5x4.5mm Block Magnet is made of Grade N48M NdFeB, Nickel Plated. The dimension is 35x5x4.5mm, Thru Thickness magnetized. Pull force is approximately 10.79 lbs (4.91kg).
B-W5H4.5L35-N48M Neodymium Block Magnets is made from high perfermance N48M NdFeB. The dimesion is 35x5x4.5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 10.79 lbs (4.91kg). Magnetization direction: Through Thickness
B-W5H4.5L35-N48M Neodymium Magnet, 35x5x4.5mm Block Magnet is made of Grade N48M NdFeB, Nickel Plated. The dimension is 35x5x4.5mm, Thru Thickness magnetized. Pull force is approximately 10.79 lbs (4.91kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W5H4.5L35-N48M
Data sheet
- Item Number
- B-W5H4.5L35-N48M
- Material
- NdFeB
- Grade
- N48M
- Size
- 35x5x4.5mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 5.906g
- Pull Force
- 10.79 lbs (4.91kg)
- Thickness
- B. 3.18-6.35mm
- Length
- G. 25.4-50.8mm
- Width
- B. 3.18-6.35mm
B-W5H4.5L35-N48M Neodymium Magnet, 35x5x4.5mm Block Magnet is made of Grade N48M NdFeB, Nickel Plated. The dimension is 35x5x4.5mm, Thru Thickness magnetized. Pull force is approximately 10.79 lbs (4.91kg).
