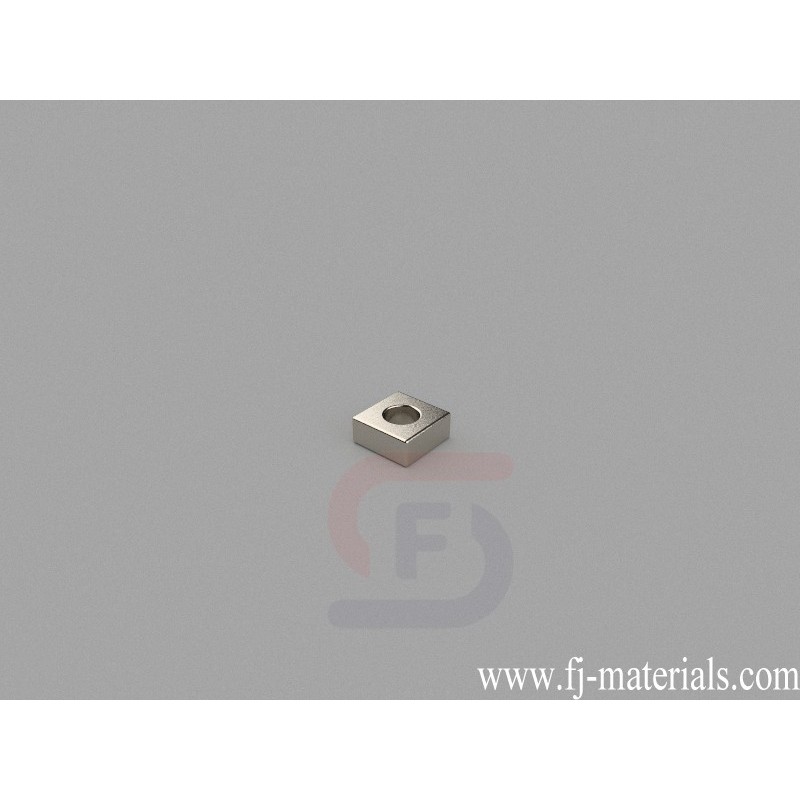

7x7x3mm with D3.5mm hole Block Magnets | B-W7H3L7-D3.5-N35
B-W7H3L7-D3.5-N35 Neodymium Magnet, 7x7x3mm with D3.5mm hole Block Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 7x7x3mm with D3.5mm hole, Thru Thickness magnetized. Pull force is approximately test value.
B-W7H3L7-D3.5-N35 Neodymium Block Magnets is made from high perfermance N35 NdFeB. The dimesion is 7x7x3mm with D3.5mm hole, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness
B-W7H3L7-D3.5-N35 Neodymium Magnet, 7x7x3mm with D3.5mm hole Block Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 7x7x3mm with D3.5mm hole, Thru Thickness magnetized. Pull force is approximately test value.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W7H3L7-D3.5-N35
Data sheet
- Item Number
- B-W7H3L7-D3.5-N35
- Material
- NdFeB
- Grade
- N35
- Size
- 7x7x3mm with D3.5mm hole
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.103g
- Pull Force
- test value
- Thickness
- A. 0.00-3.18mm
- Length
- C. 6.35-9.53mm
- Width
- C. 6.35-9.53mm
B-W7H3L7-D3.5-N35 Neodymium Magnet, 7x7x3mm with D3.5mm hole Block Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 7x7x3mm with D3.5mm hole, Thru Thickness magnetized. Pull force is approximately test value.
