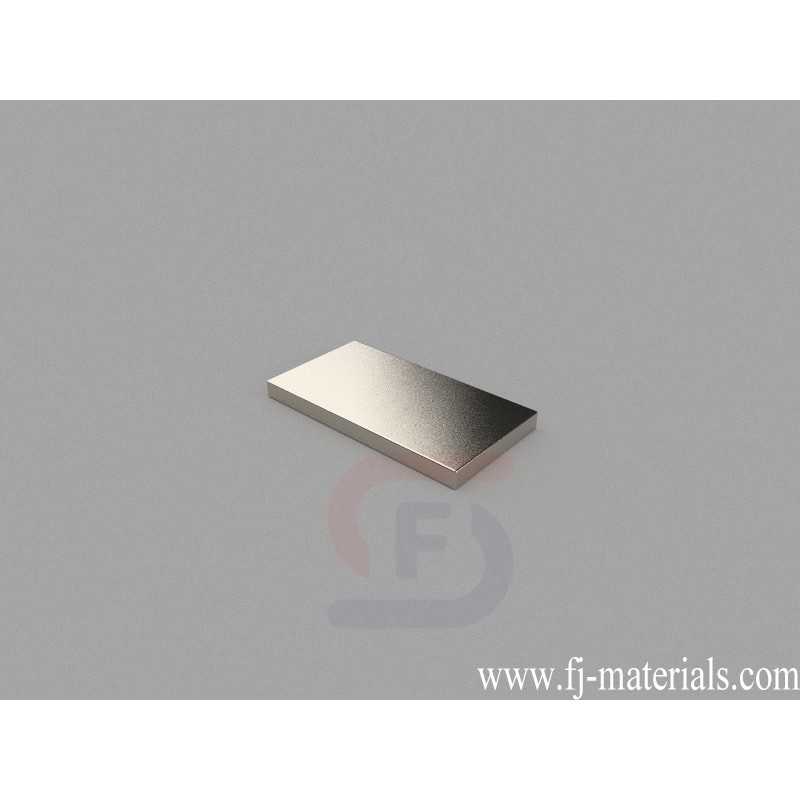

15x8x1.2mm Block Magnets | B-W8H1.2L15-N48

B-W8H1.2L15-N48 Neodymium Magnet, 15x8x1.2mm Block Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 15x8x1.2mm, Thru Thickness magnetized. Pull force is approximately 2.32 lbs (1.05kg).

B-W8H1.2L15-N48 Neodymium Block Magnets is made from high perfermance N48 NdFeB. The dimesion is 15x8x1.2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 2.32 lbs (1.05kg). Magnetization direction: Through Thickness

B-W8H1.2L15-N48 Neodymium Magnet, 15x8x1.2mm Block Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 15x8x1.2mm, Thru Thickness magnetized. Pull force is approximately 2.32 lbs (1.05kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B-W8H1.2L15-N48

Data sheet

Item Number
B-W8H1.2L15-N48
Material
NdFeB
Grade
N48
Size
15x8x1.2mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
1.080g
Pull Force
2.32 lbs (1.05kg)
Thickness
A. 0.00-3.18mm
Length
E. 12.7-19.05mm
Width
C. 6.35-9.53mm
