20x8x2mm Block Magnets | B-W8H2L20-N42

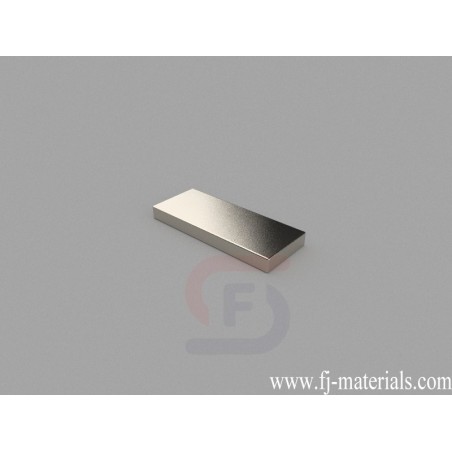

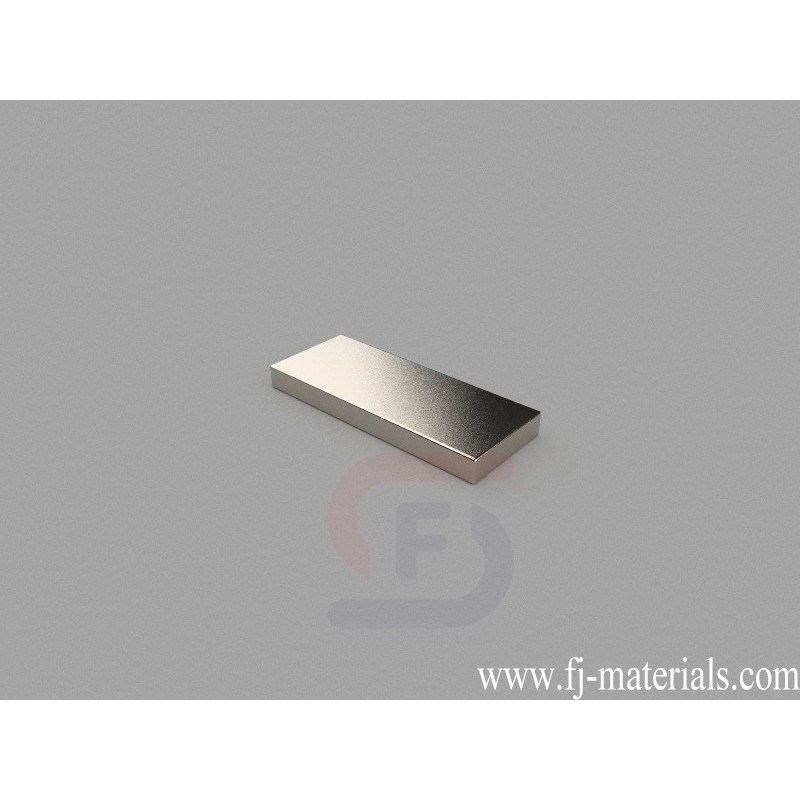

B-W8H2L20-N42 Neodymium Magnet, 20x8x2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20x8x2mm, Thru Thickness magnetized. Pull force is approximately 3.96 lbs (1.80kg).
B-W8H2L20-N42 Neodymium Block Magnets is made from high perfermance N42 NdFeB. The dimesion is 20x8x2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 3.96 lbs (1.80kg). Magnetization direction: Through Thickness
B-W8H2L20-N42 Neodymium Magnet, 20x8x2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20x8x2mm, Thru Thickness magnetized. Pull force is approximately 3.96 lbs (1.80kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W8H2L20-N42
Data sheet
- Item Number
- B-W8H2L20-N42
- Material
- NdFeB
- Grade
- N42
- Size
- 20x8x2mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.400g
- Pull Force
- 3.96 lbs (1.80kg)
- Thickness
- A. 0.00-3.18mm
- Length
- F. 19.05-25.4mm
- Width
- C. 6.35-9.53mm
B-W8H2L20-N42 Neodymium Magnet, 20x8x2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20x8x2mm, Thru Thickness magnetized. Pull force is approximately 3.96 lbs (1.80kg).
