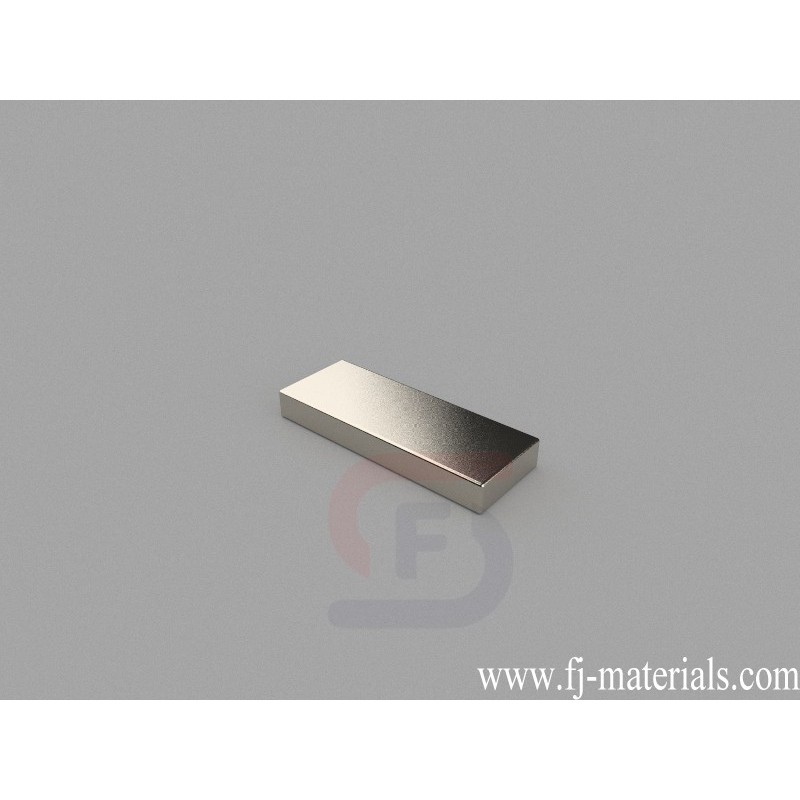

25.4x9.53x3.2mm Block Magnets | B-W9.53H3.2L25.4-N50MZn
B-W9.53H3.2L25.4-N50MZn Neodymium Magnet, 25.4x9.53x3.2mm Block Magnet is made of Grade N50 NdFeB, Zinc Plated. The dimension is 25.4x9.53x3.2mm, Thru Thickness magnetized. Pull force is approximately 9.03 lbs (4.10kg).
B-W9.53H3.2L25.4-N50MZn Neodymium Block Magnets is made from high perfermance N50 NdFeB. The dimesion is 25.4x9.53x3.2mm, Zinc (Zn) coating. Pull force: 9.03 lbs (4.10kg). Magnetization direction: Through Thickness
B-W9.53H3.2L25.4-N50MZn Neodymium Magnet, 25.4x9.53x3.2mm Block Magnet is made of Grade N50 NdFeB, Zinc Plated. The dimension is 25.4x9.53x3.2mm, Thru Thickness magnetized. Pull force is approximately 9.03 lbs (4.10kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B-W9.53H3.2L25.4-N50MZn
Data sheet
- Item Number
- B-W9.53H3.2L25.4-N50MZn
- Material
- NdFeB
- Grade
- N50
- Size
- 25.4x9.53x3.2mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Zinc Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 5.809g
- Pull Force
- 9.03 lbs (4.10kg)
- Thickness
- B. 3.18-6.35mm
- Length
- F. 19.05-25.4mm
- Width
- C. 6.35-9.53mm
B-W9.53H3.2L25.4-N50MZn Neodymium Magnet, 25.4x9.53x3.2mm Block Magnet is made of Grade N50 NdFeB, Zinc Plated. The dimension is 25.4x9.53x3.2mm, Thru Thickness magnetized. Pull force is approximately 9.03 lbs (4.10kg).
