20x12x5mm with countersunk hole d5/7 Block Magnets | CB-W12H5L20D5/D7

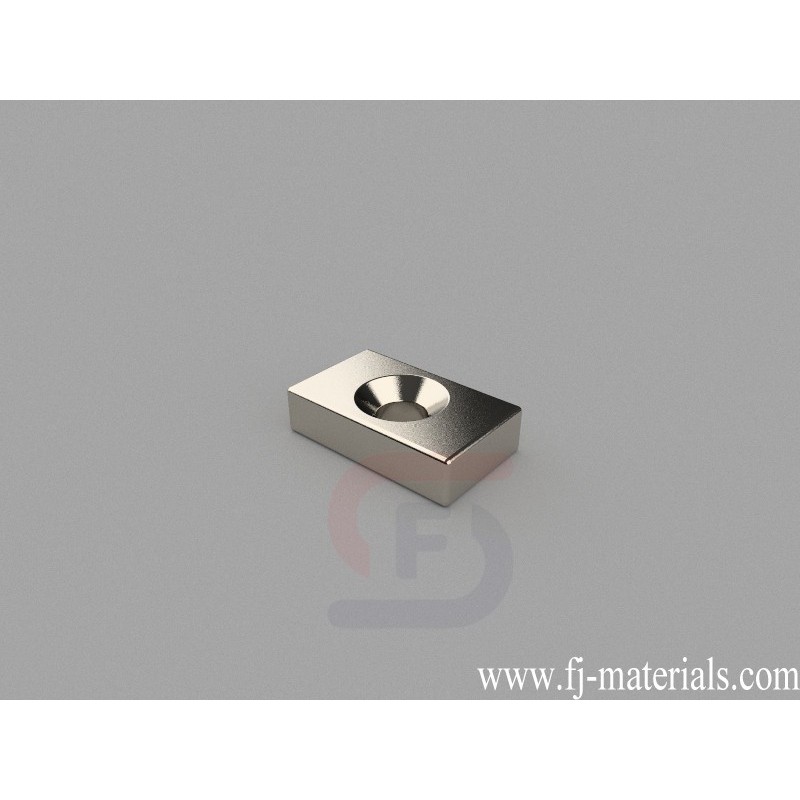

CB-W12H5L20D5/D7 Neodymium Magnet, 20x12x5mm with countersunk hole d5/7 Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20x12x5mm with countersunk hole d5/7, Thru Thickness magnetized. Pull force is approximately test value.
CB-W12H5L20D5/D7 Neodymium Block Magnets is made from high perfermance N42 NdFeB. The dimesion is 20x12x5mm with countersunk hole d5/7, Ni-Cu-Ni (Nickel) coating. Pull force: test value. Magnetization direction: Through Thickness
CB-W12H5L20D5/D7 Neodymium Magnet, 20x12x5mm with countersunk hole d5/7 Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20x12x5mm with countersunk hole d5/7, Thru Thickness magnetized. Pull force is approximately test value.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
CB-W12H5L20D5/D7
Data sheet
- Item Number
- CB-W12H5L20D5/D7
- Material
- NdFeB
- Grade
- N42
- Size
- 20x12x5mm with countersunk hole d5/7
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 9.000g
- Pull Force
- test value
- Thickness
- B. 3.18-6.35mm
- Length
- F. 19.05-25.4mm
- Width
- D. 9.53-12.7mm
CB-W12H5L20D5/D7 Neodymium Magnet, 20x12x5mm with countersunk hole d5/7 Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20x12x5mm with countersunk hole d5/7, Thru Thickness magnetized. Pull force is approximately test value.
