1 x 1/2 x 1/4 inch thick Block Magnets | BX084

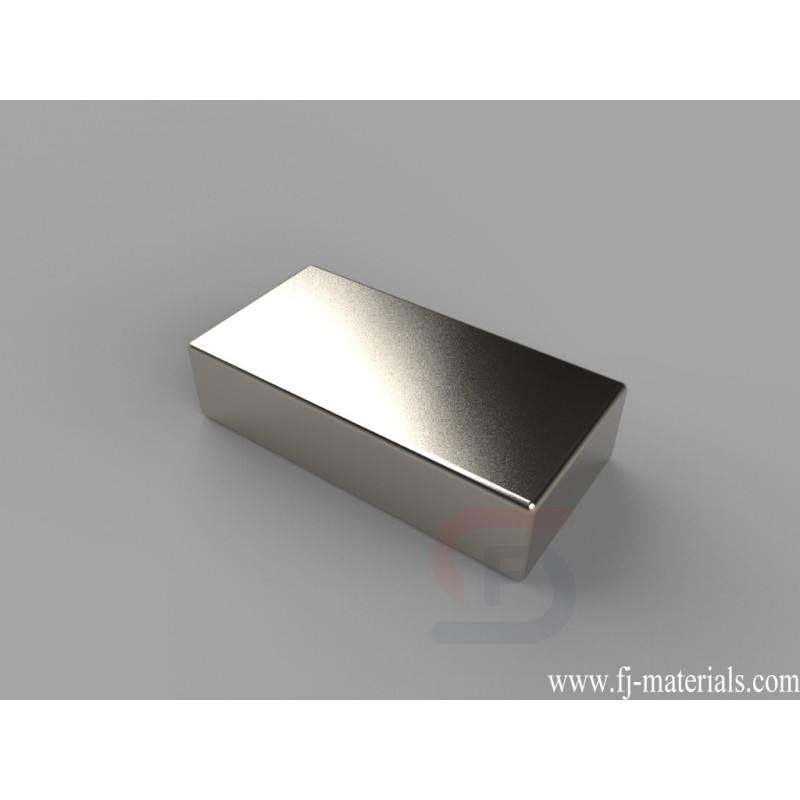

BX084 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 20.37 lbs.
Yiwu Fenjiao E-commerce Firm supply BX084 Neodymium Block Magnets with high quality at competitive price.
BX084 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 20.37 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX084
Data sheet
- Item Number
- BX084
- Material
- NdFeB
- Grade
- N42
- Size
- 1" x 1/2" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.542 oz. (15.37 g)
- Pull Force
- 20.37 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- F. 19.05-25.4mm
- Width
- D. 9.53-12.7mm
BX084 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 20.37 lbs.
