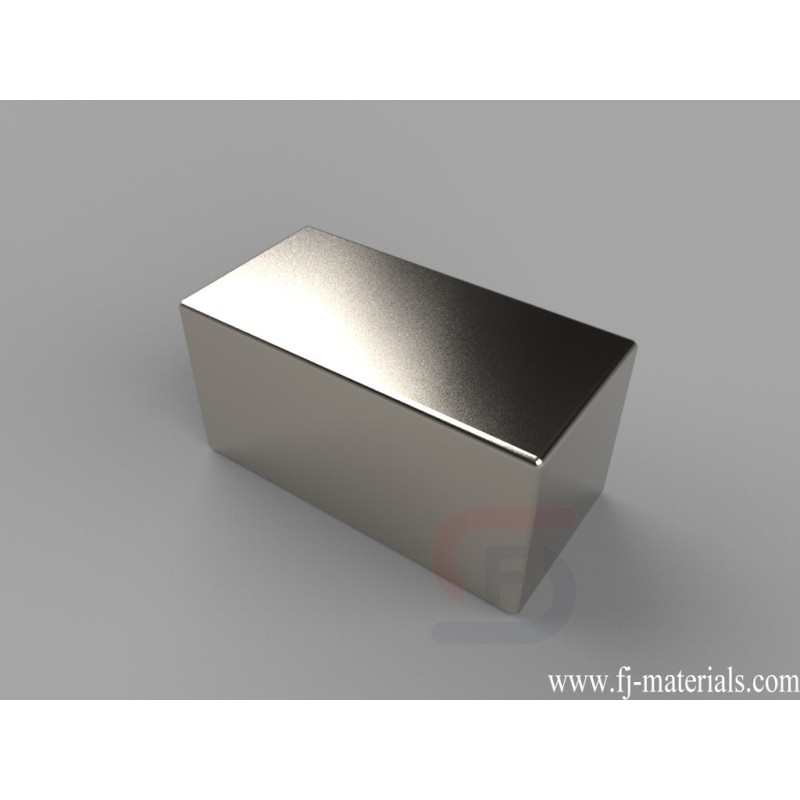

1 x 1/2 x 1/2 inch thick Block Magnets | BX088SH

BX088SH Neodymium Magnets, 1" x 1/2" x 1/2" thick is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 1" x 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 31.01 lbs.

BX088SH Neodymium Block / Bar Magnets is made from high perfermance N42SH NdFeB. The dimesion is 1" x 1/2" x 1/2" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 31.01 lbs. Magnetization direction: Through Thickness

BX088SH Neodymium Magnets, 1" x 1/2" x 1/2" thick is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 1" x 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 31.01 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

BX088SH

Data sheet

Item Number
BX088SH
Material
NdFeB
Grade
N42SH
Size
1" x 1/2" x 1/2" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
1.08 oz. (30.7 g)
Pull Force
31.01 lbs
Thickness
D. 9.53-12.7mm
Length
F. 19.05-25.4mm
Width
D. 9.53-12.7mm
