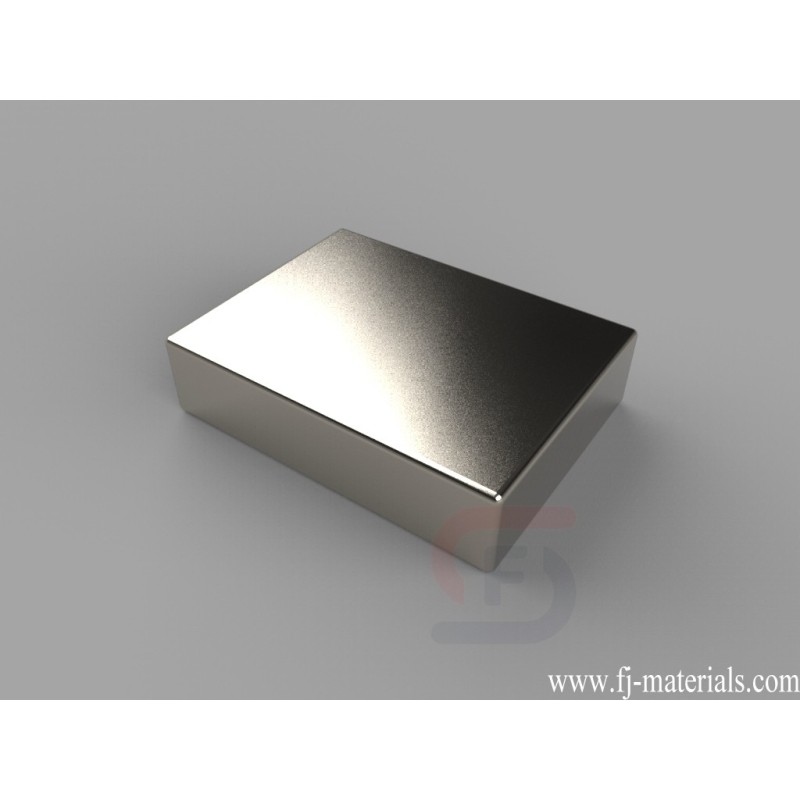

1 x 3/4 x 1/4 inch thick Block Magnets | BX0C4

BX0C4 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 3/4" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 26.41 lbs.

Yiwu Fenjiao E-commerce Firm supply BX0C4 Neodymium Block Magnets with high quality at competitive price.

BX0C4 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 3/4" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 26.41 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

BX0C4

Data sheet

Item Number
BX0C4
Material
NdFeB
Grade
N42
Size
1" x 3/4" x 1/4" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.813 oz. (23.05 g)
Pull Force
26.41 lbs
Thickness
B. 3.18-6.35mm
Length
F. 19.05-25.4mm
Width
E. 12.7-19.05mm
