1 x 1 x 3/16 inch thick w/ countersunk holes to accept No. 6 screws Block Magnets | BX0X03DCS

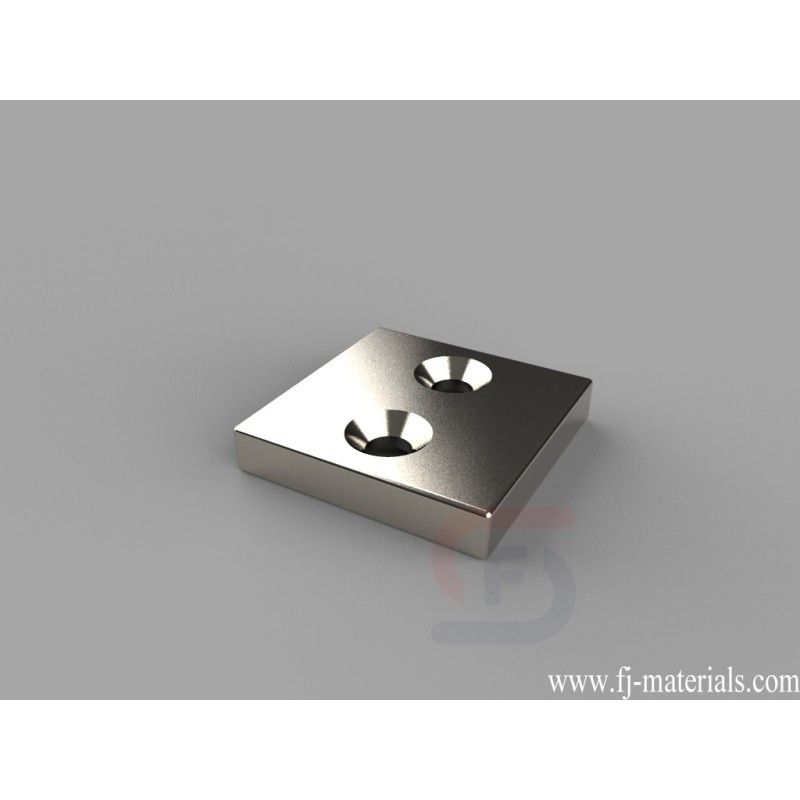

BX0X03DCS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 3/16" thick w/ countersunk holes to accept #6 screws, Thru Thickness magnetized. Pull force is approximately 22.95 lbs.
Yiwu Fenjiao E-commerce Firm supply BX0X03DCS Neodymium Block Magnets with high quality at competitive price.
BX0X03DCS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 3/16" thick w/ countersunk holes to accept #6 screws, Thru Thickness magnetized. Pull force is approximately 22.95 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX0X03DCS
Data sheet
- Item Number
- BX0X03DCS
- Material
- NdFeB
- Grade
- N42
- Size
- 1" x 1" x 3/16" thick w/ countersunk holes to accept No. 6 screws
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.750 oz. (21.25g)
- Pull Force
- 22.95 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
BX0X03DCS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 3/16" thick w/ countersunk holes to accept #6 screws, Thru Thickness magnetized. Pull force is approximately 22.95 lbs.
