1 x 1 x 1/2 inch thick w/ hole to accept a No. 10 screw Block Magnets | BX0X08DCB

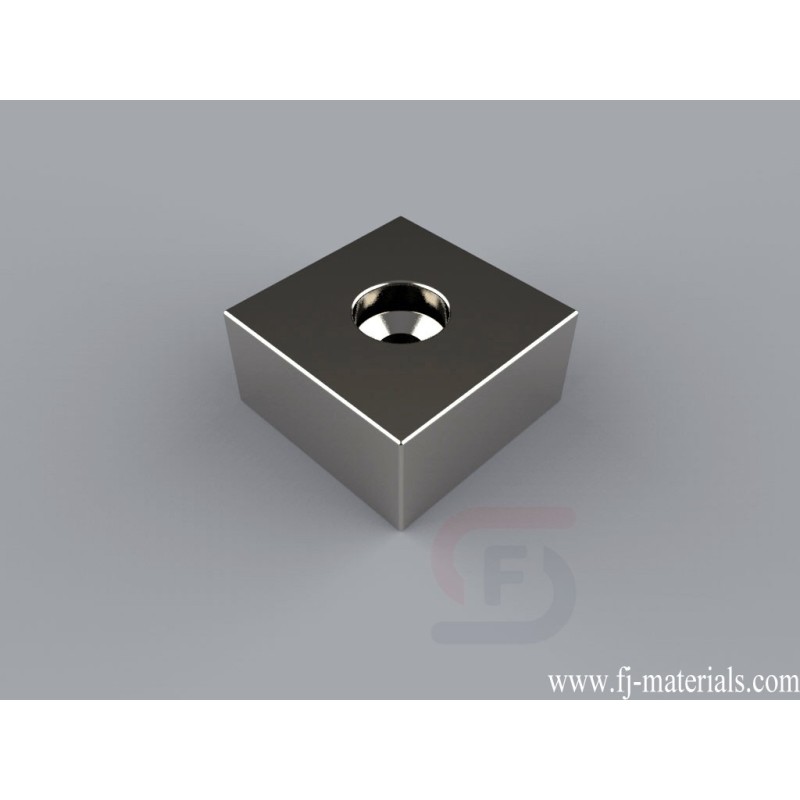

BX0X08DCB Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 1/2" thick w/ hole to accept a #10 screw, Thru Thickness magnetized. Pull force is approximately 48.45 lbs.
Yiwu Fenjiao E-commerce Firm supply BX0X08DCB Neodymium Block Magnets with high quality at competitive price.
BX0X08DCB Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 1/2" thick w/ hole to accept a #10 screw, Thru Thickness magnetized. Pull force is approximately 48.45 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX0X08DCB
Data sheet
- Item Number
- BX0X08DCB
- Material
- NdFeB
- Grade
- N42
- Size
- 1" x 1" x 1/2" thick w/ hole to accept a No. 10 screw
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.98 oz. (56.13 g)
- Pull Force
- 48.45 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
BX0X08DCB Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 1/2" thick w/ hole to accept a #10 screw, Thru Thickness magnetized. Pull force is approximately 48.45 lbs.
