  • B421SH

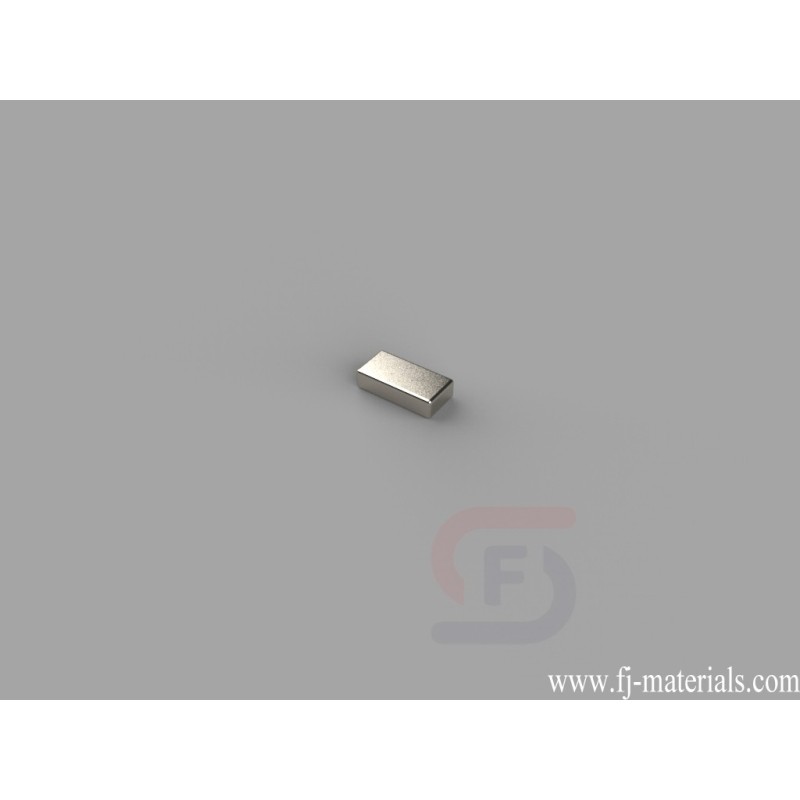

1/4 x 1/8 x 1/16 inch thick Block Magnets | B421SH

B421SH Neodymium Magnets, 1/4" x 1/8" x 1/16" thick is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 1/4" x 1/8" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 0.83 lbs.

B421SH Neodymium Block / Bar Magnets is made from high perfermance N42SH NdFeB. The dimesion is 1/4" x 1/8" x 1/16" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.83 lbs. Magnetization direction: Through Thickness

B421SH Neodymium Magnets, 1/4" x 1/8" x 1/16" thick is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 1/4" x 1/8" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 0.83 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B421SH

Data sheet

Item Number
B421SH
Material
NdFeB
Grade
N42SH
Size
1/4" x 1/8" x 1/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.00847 oz. (0.240 g)
Pull Force
0.83 lbs
Thickness
A. 0.00-3.18mm
Length
B. 3.18-6.35mm
Width
A. 0.00-3.18mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
