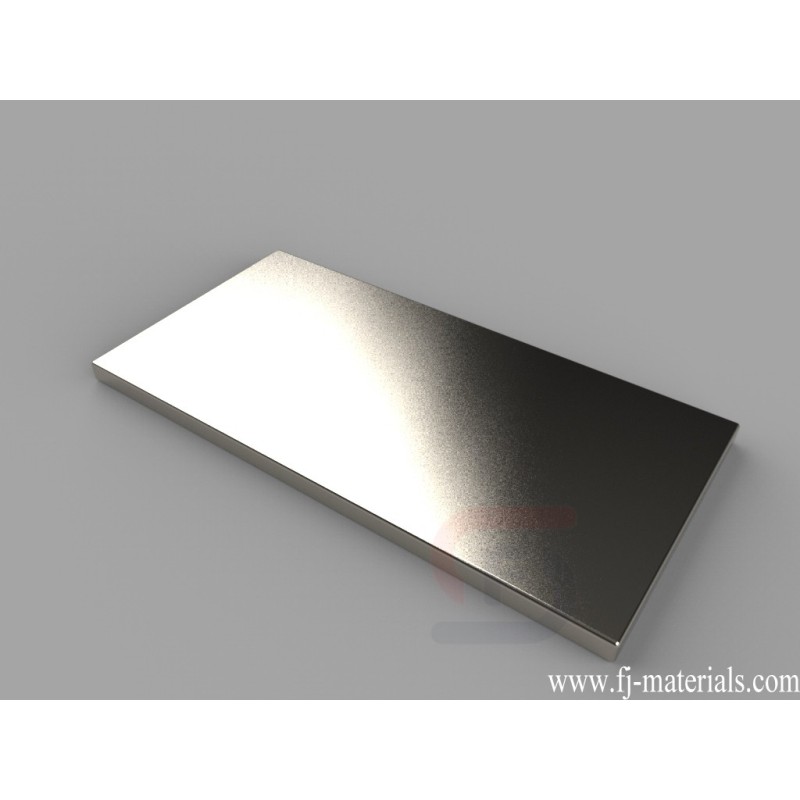

1 1/2 x 3/4 x 1/16 inch thick Block Magnets | BX8C1

BX8C1 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 3/4" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 7.17 lbs.

Yiwu Fenjiao E-commerce Firm supply BX8C1 Neodymium Block Magnets with high quality at competitive price.

BX8C1 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 3/4" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 7.17 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

BX8C1

Data sheet

Item Number
BX8C1
Material
NdFeB
Grade
N42
Size
1 1/2" x 3/4" x 1/16" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.305 oz. (8.64 g)
Pull Force
7.17 lbs
Thickness
A. 0.00-3.18mm
Length
G. 25.4-50.8mm
Width
E. 12.7-19.05mm
