1 1/2 x 1 1/2 x 3/4 inch thick Block Magnets | BX8X8C-N52

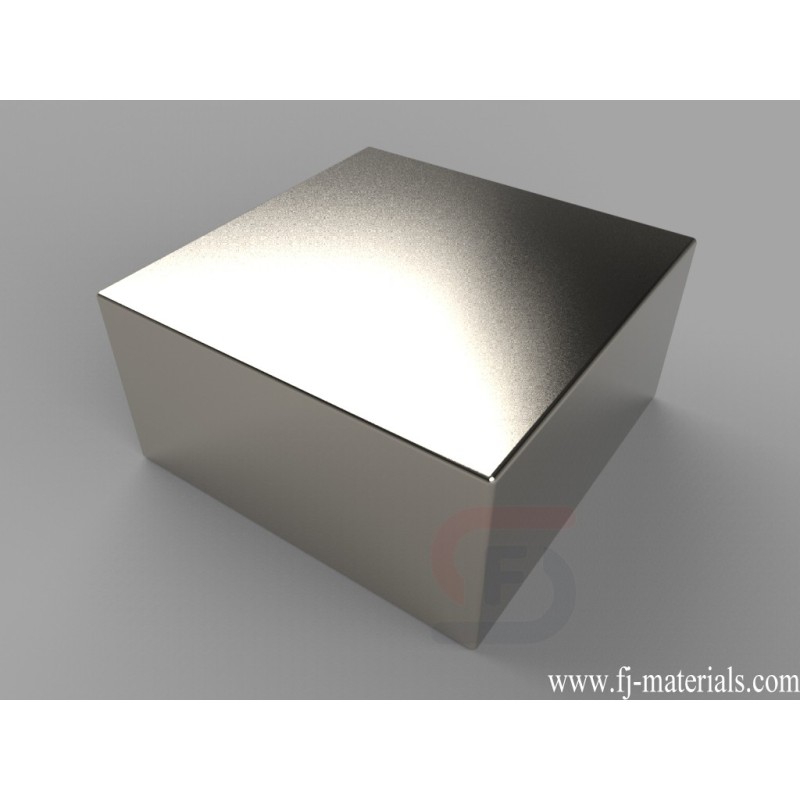

BX8X8C-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1 1/2" x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 147.1 lbs.
Yiwu Fenjiao E-commerce Firm supply BX8X8C-N52 Neodymium Block Magnets with high quality at competitive price.
BX8X8C-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1 1/2" x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 147.1 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX8X8C-N52
Data sheet
- Item Number
- BX8X8C-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 1 1/2" x 1 1/2" x 3/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 7.32 oz. (207.4 g)
- Pull Force
- 147.1 lbs
- Thickness
- E. 12.7-19.05mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
BX8X8C-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1 1/2" x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 147.1 lbs.
