2 x 1/4 x 1/8 inch thick Block Magnets | BY042SH

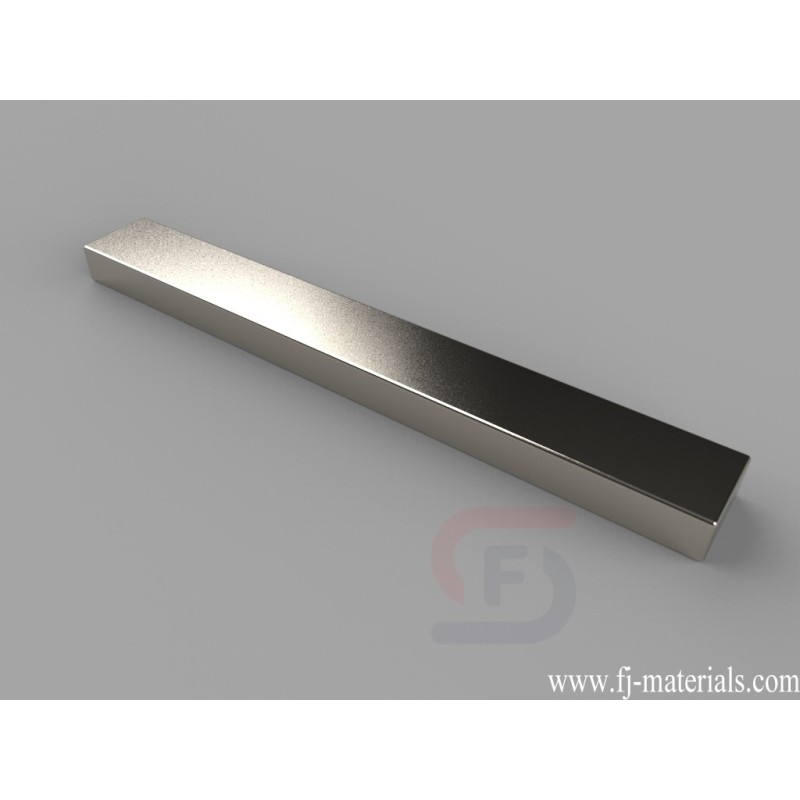

BY042SH Neodymium Magnets, 2" x 1/4" x 1/8" thick is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 2" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 10.34 lbs.

BY042SH Neodymium Block / Bar Magnets is made from high perfermance N42SH NdFeB. The dimesion is 2" x 1/4" x 1/8" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 10.34 lbs. Magnetization direction: Through Thickness

BY042SH Neodymium Magnets, 2" x 1/4" x 1/8" thick is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 2" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 10.34 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

BY042SH

Data sheet

Item Number
BY042SH
Material
NdFeB
Grade
N42SH
Size
2" x 1/4" x 1/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.271 oz. (7.68 g)
Pull Force
10.34 lbs
Thickness
A. 0.00-3.18mm
Length
G. 25.4-50.8mm
Width
B. 3.18-6.35mm
