2 x 3/8 x 1/8 inch thick Block Magnets | BY062

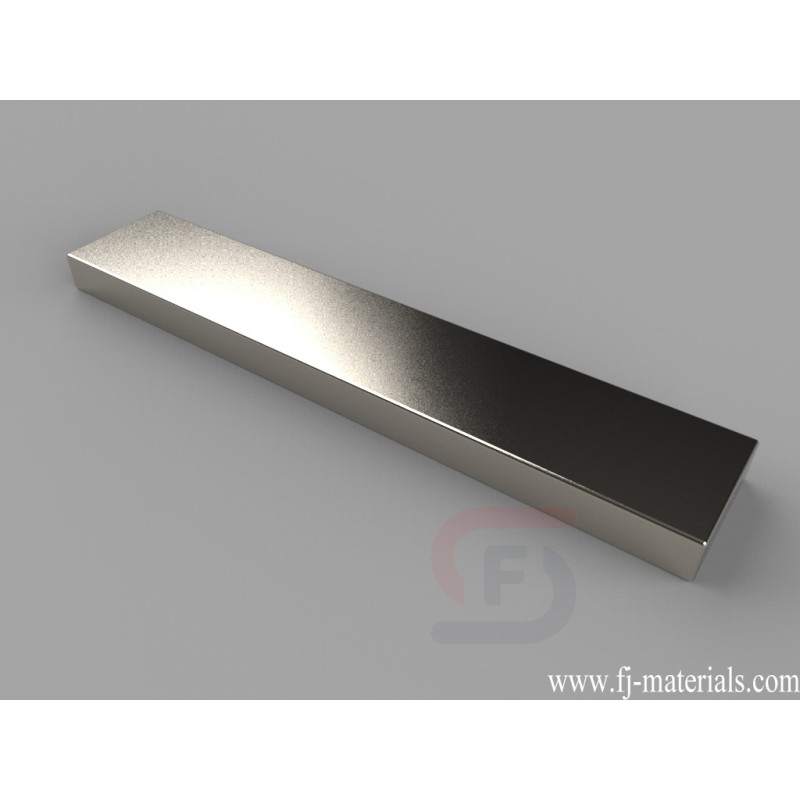

BY062 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 3/8" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 12.36 lbs.
Yiwu Fenjiao E-commerce Firm supply BY062 Neodymium Block Magnets with high quality at competitive price.
BY062 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 3/8" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 12.36 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BY062
Data sheet
- Item Number
- BY062
- Material
- NdFeB
- Grade
- N42
- Size
- 2" x 3/8" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.407 oz. (11.52 g)
- Pull Force
- 12.36 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- G. 25.4-50.8mm
- Width
- C. 6.35-9.53mm
BY062 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 3/8" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 12.36 lbs.
