2 x 1/2 x 1/2 inch thick Block Magnets | BY088

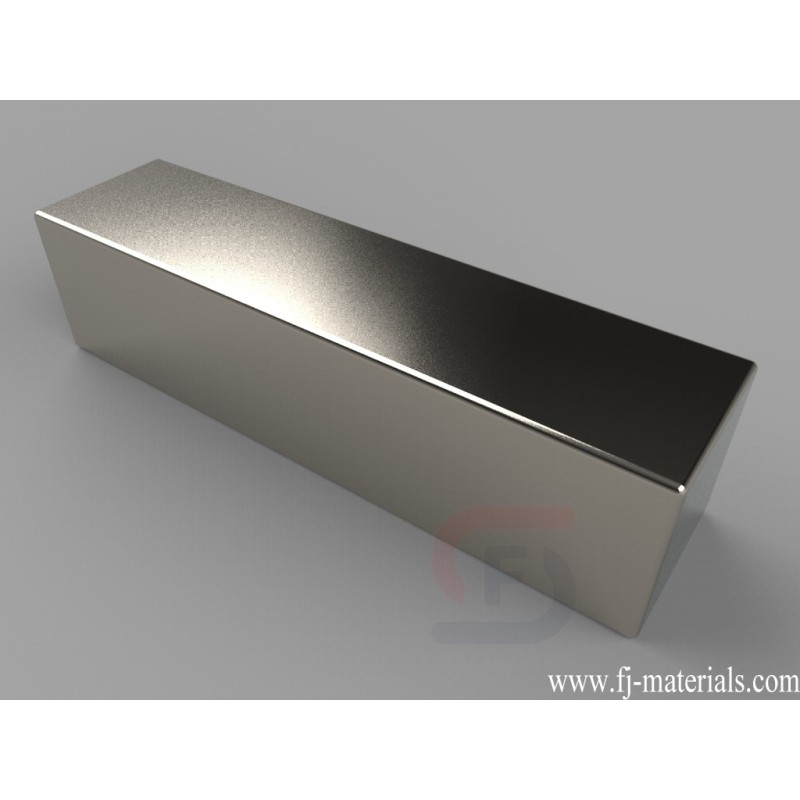

BY088 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 54.44 lbs.
Yiwu Fenjiao E-commerce Firm supply BY088 Neodymium Block Magnets with high quality at competitive price.
BY088 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 54.44 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BY088
Data sheet
- Item Number
- BY088
- Material
- NdFeB
- Grade
- N42
- Size
- 2" x 1/2" x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.17 oz. (61.46 g)
- Pull Force
- 54.44 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- G. 25.4-50.8mm
- Width
- D. 9.53-12.7mm
BY088 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 54.44 lbs.
