2 x 1 x 1/4 inch thick w/ holes to accept No. 8 screws Block Magnets | BY0X04DCS

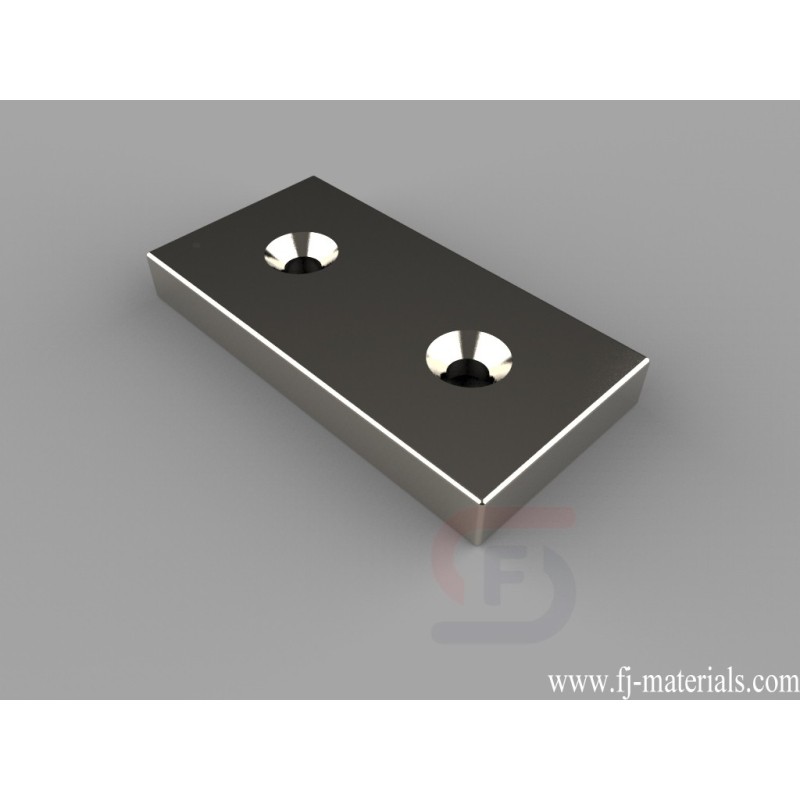

BY0X04DCS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 1" x 1/4" thick w/ holes to accept #8 screws, Thru Thickness magnetized. Pull force is approximately 34.34 lbs.
Yiwu Fenjiao E-commerce Firm supply BY0X04DCS Neodymium Block Magnets with high quality at competitive price.
BY0X04DCS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 1" x 1/4" thick w/ holes to accept #8 screws, Thru Thickness magnetized. Pull force is approximately 34.34 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BY0X04DCS
Data sheet
- Item Number
- BY0X04DCS
- Material
- NdFeB
- Grade
- N42
- Size
- 2" x 1" x 1/4" thick w/ holes to accept No. 8 screws
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.01 oz. (57.06 g)
- Pull Force
- 34.34 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- G. 25.4-50.8mm
- Width
- F. 19.05-25.4mm
BY0X04DCS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 1" x 1/4" thick w/ holes to accept #8 screws, Thru Thickness magnetized. Pull force is approximately 34.34 lbs.
