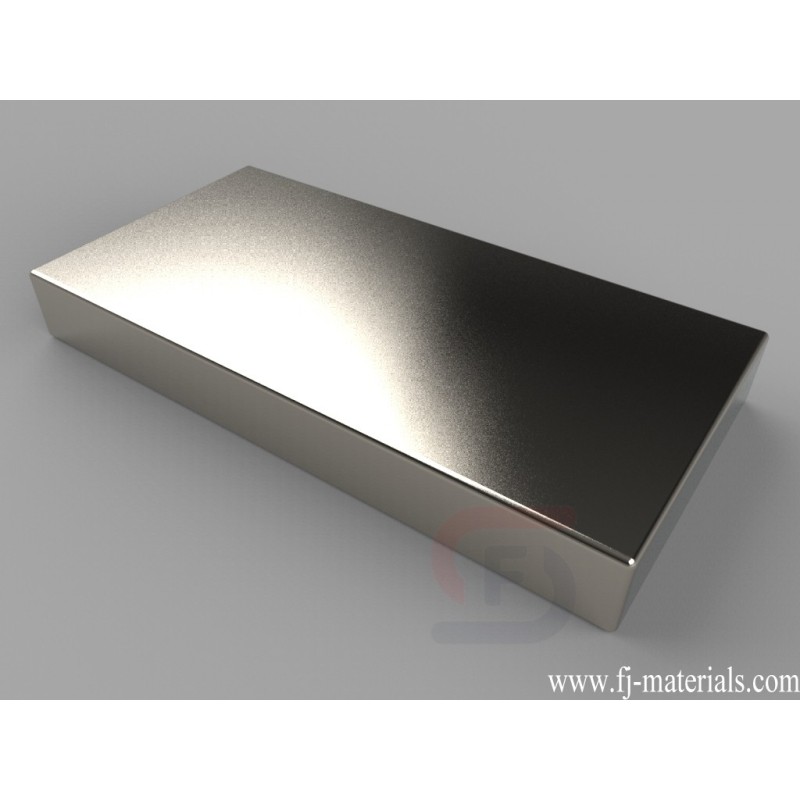

2 x 1 x 3/8 inch thick Block Magnets | BY0X06-N52
BY0X06-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 2" x 1" x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 76.52 lbs.
Yiwu Fenjiao E-commerce Firm supply BY0X06-N52 Neodymium Block Magnets with high quality at competitive price.
BY0X06-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 2" x 1" x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 76.52 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BY0X06-N52
Data sheet
- Item Number
- BY0X06-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 2" x 1" x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 3.25 oz. (92.2 g)
- Pull Force
- 76.52 lbs
- Thickness
- C. 6.35-9.53mm
- Length
- G. 25.4-50.8mm
- Width
- F. 19.05-25.4mm
BY0X06-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 2" x 1" x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 76.52 lbs.
