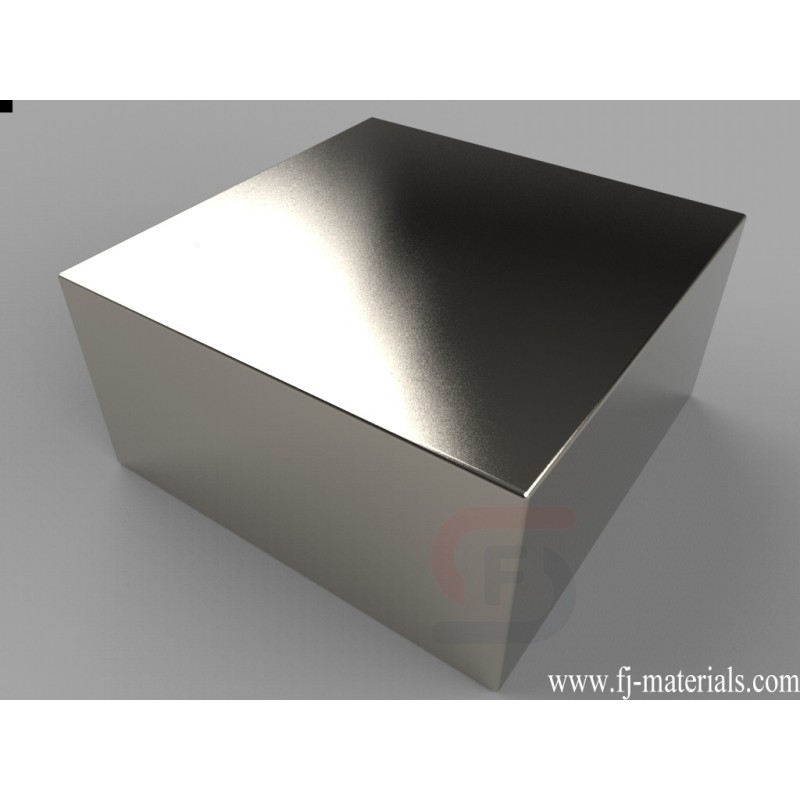

2 x 2 x 1 inch thick Block Magnets | BY0Y0X0-N52
BY0Y0X0-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 2" x 2" x 1" thick, Thru Thickness magnetized. Pull force is approximately 318.6 lbs.
Yiwu Fenjiao E-commerce Firm supply BY0Y0X0-N52 Neodymium Block Magnets with high quality at competitive price.
BY0Y0X0-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 2" x 2" x 1" thick, Thru Thickness magnetized. Pull force is approximately 318.6 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BY0Y0X0-N52
Data sheet
- Item Number
- BY0Y0X0-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 2" x 2" x 1" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 17.34 oz. (491.7 g)
- Pull Force
- 318.6 lbs
- Thickness
- F. 19.05-25.4mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
BY0Y0X0-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 2" x 2" x 1" thick, Thru Thickness magnetized. Pull force is approximately 318.6 lbs.
