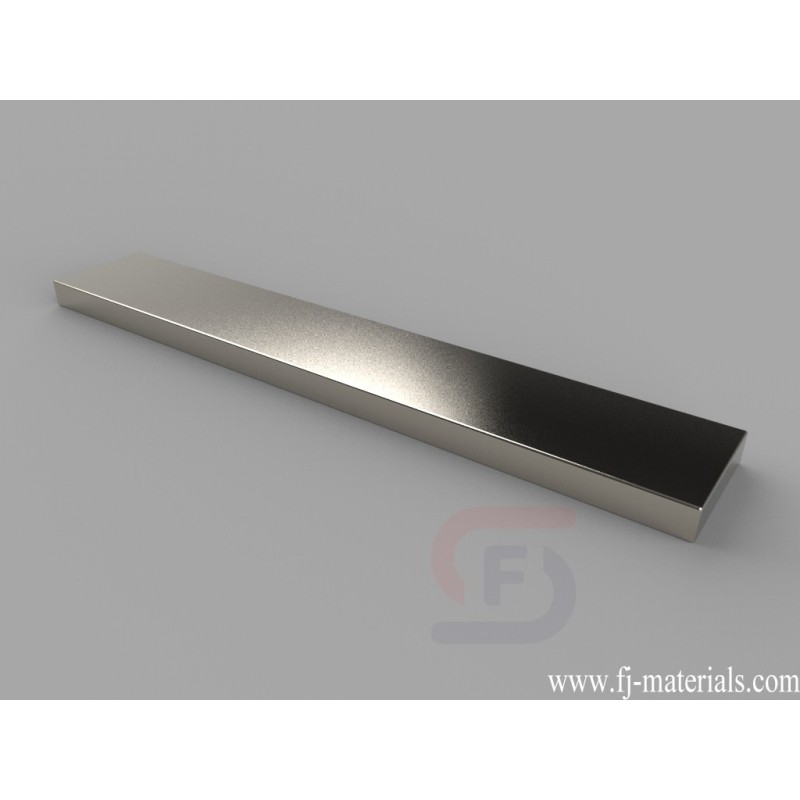

3 x 1/2 x 1/8 inch thick Block Magnets | BZ082
BZ082 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" x 1/2" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 18.33 lbs.
Yiwu Fenjiao E-commerce Firm supply BZ082 Neodymium Block Magnets with high quality at competitive price.
BZ082 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" x 1/2" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 18.33 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZ082
Data sheet
- Item Number
- BZ082
- Material
- NdFeB
- Grade
- N42
- Size
- 3" x 1/2" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.813 oz. (23.05 g)
- Pull Force
- 18.33 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- H. 50.8-254mm
- Width
- D. 9.53-12.7mm
BZ082 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" x 1/2" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 18.33 lbs.
