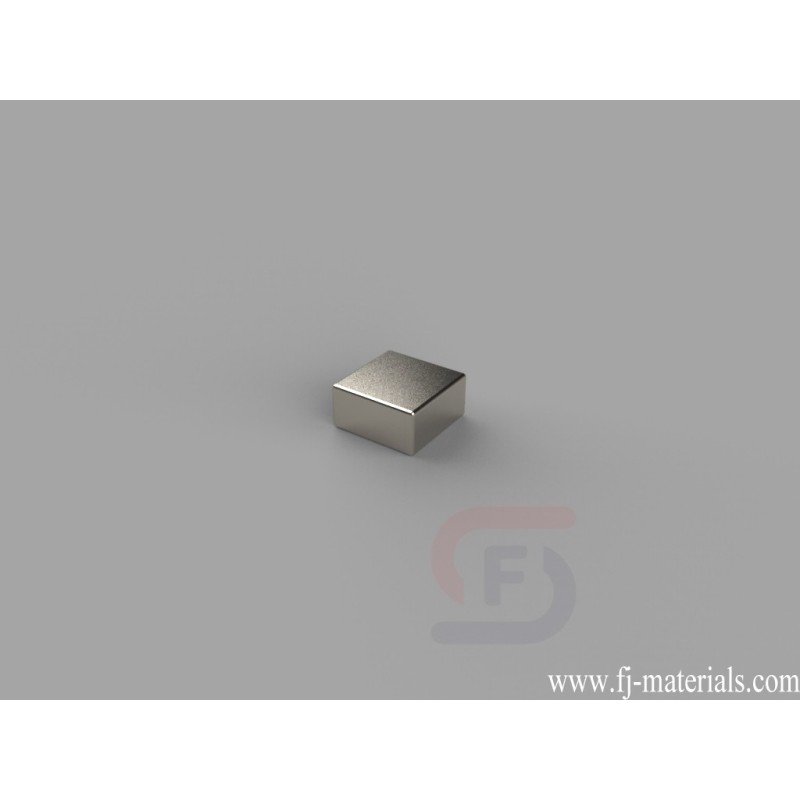

1/4 x 1/4 x 1/8 inch thick Block Magnets | B442-N50
B442-N50 Neodymium Magnets, 1/4" x 1/4" x 1/8" thick is made of Grade N50 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 3.38 lbs.
B442-N50 Neodymium Block / Bar Magnets is made from high perfermance N50 NdFeB. The dimesion is 1/4" x 1/4" x 1/8" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 3.38 lbs. Magnetization direction: Through Thickness
B442-N50 Neodymium Magnets, 1/4" x 1/4" x 1/8" thick is made of Grade N50 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 3.38 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B442-N50
Data sheet
- Item Number
- B442-N50
- Material
- NdFeB
- Grade
- N50
- Size
- 1/4" x 1/4" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.0339 oz. (0.960 g)
- Pull Force
- 3.38 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- B. 3.18-6.35mm
- Width
- B. 3.18-6.35mm
B442-N50 Neodymium Magnets, 1/4" x 1/4" x 1/8" thick is made of Grade N50 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 3.38 lbs.
