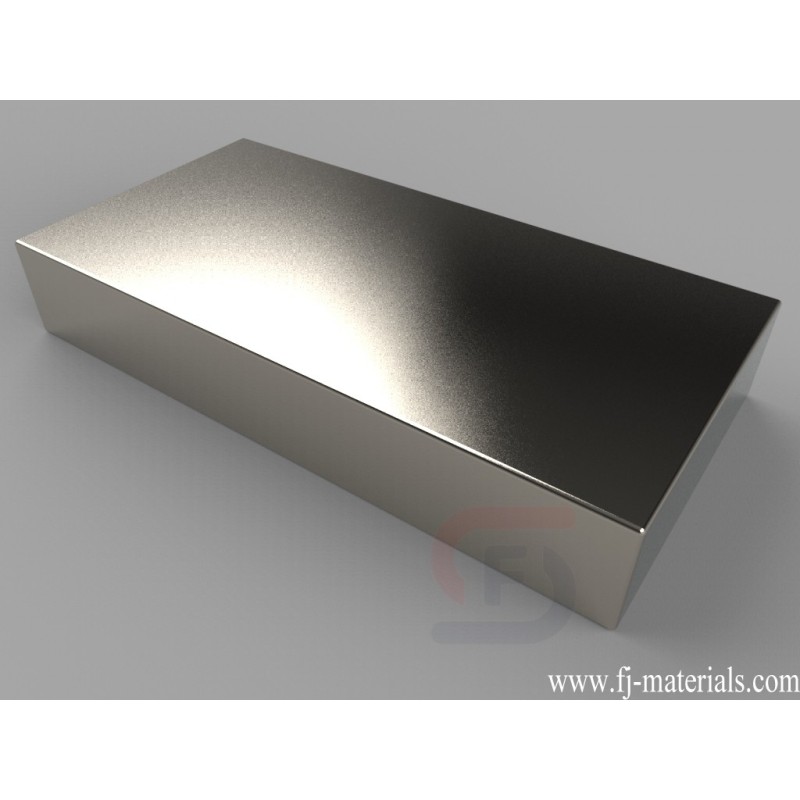

3 x 1 1/2 x 1/2 inch thick Block Magnets | BZ0X88
BZ0X88 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" x 1 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 122.3 lbs.
Yiwu Fenjiao E-commerce Firm supply BZ0X88 Neodymium Block Magnets with high quality at competitive price.
BZ0X88 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" x 1 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 122.3 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZ0X88
Data sheet
- Item Number
- BZ0X88
- Material
- NdFeB
- Grade
- N42
- Size
- 3" x 1 1/2" x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 9.76 oz. (276.6 g)
- Pull Force
- 122.3 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- H. 50.8-254mm
- Width
- G. 25.4-50.8mm
BZ0X88 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" x 1 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 122.3 lbs.
