3 x 3 x 1/4 inch thick Block Magnets | BZ0Z04-N52

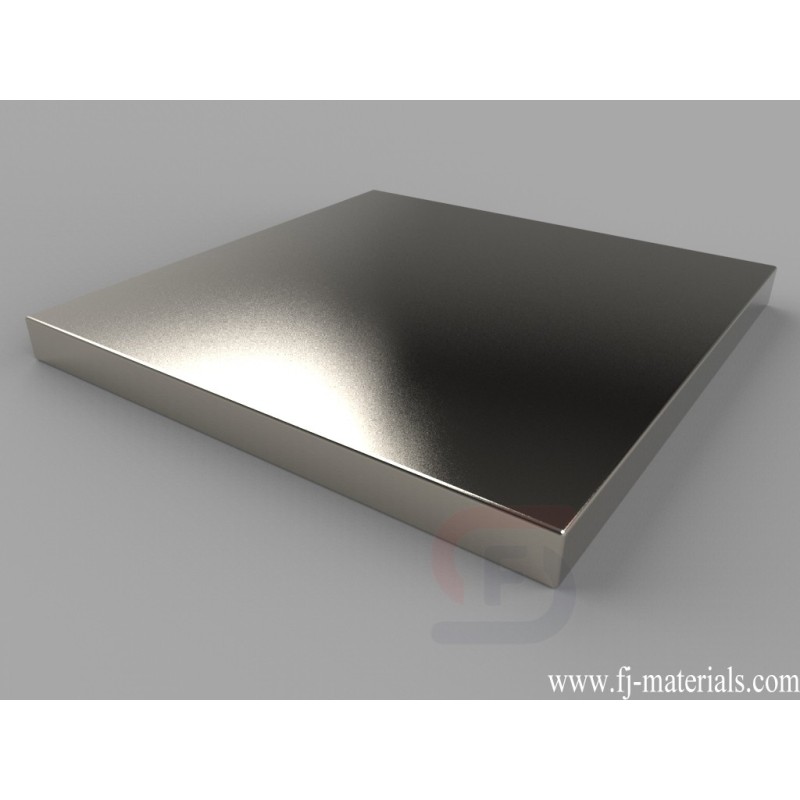

BZ0Z04-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3" x 3" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 101.1 lbs.
Yiwu Fenjiao E-commerce Firm supply BZ0Z04-N52 Neodymium Block Magnets with high quality at competitive price.
BZ0Z04-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3" x 3" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 101.1 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZ0Z04-N52
Data sheet
- Item Number
- BZ0Z04-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 3" x 3" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 9.76 oz. (276.6 g)
- Pull Force
- 101.1 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- H. 50.8-254mm
- Width
- H. 50.8-254mm
BZ0Z04-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 3" x 3" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 101.1 lbs.
