4 x 2 x 1/4 inch thick Block Magnets | BZX0Y04

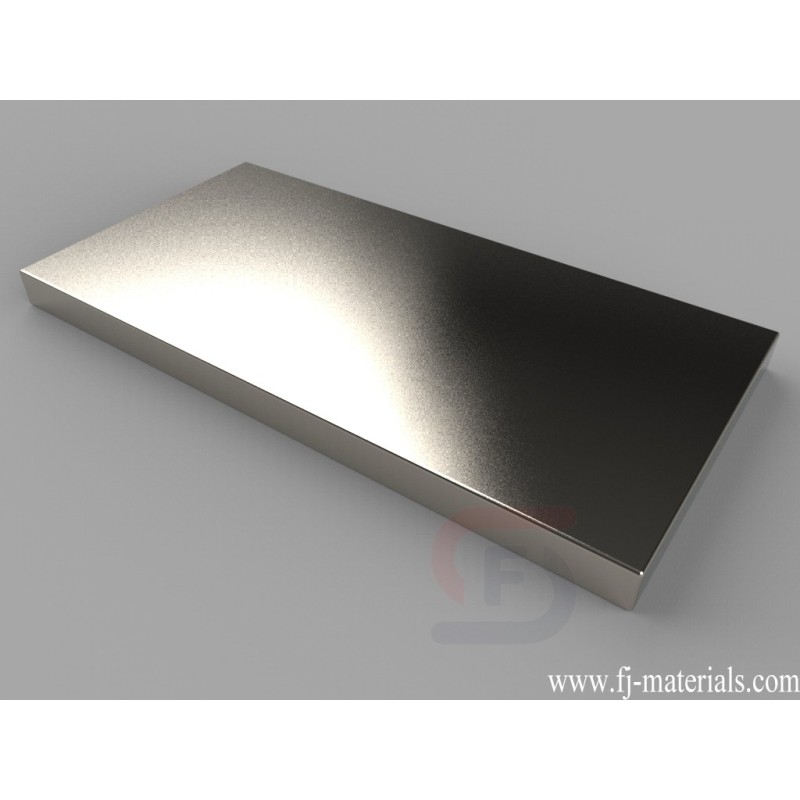

BZX0Y04 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 73.33 lbs.
Yiwu Fenjiao E-commerce Firm supply BZX0Y04 Neodymium Block Magnets with high quality at competitive price.
BZX0Y04 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 73.33 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZX0Y04
Data sheet
- Item Number
- BZX0Y04
- Material
- NdFeB
- Grade
- N42
- Size
- 4" x 2" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 8.67 oz. (245.8 g)
- Pull Force
- 73.33 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- H. 50.8-254mm
- Width
- G. 25.4-50.8mm
BZX0Y04 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 73.33 lbs.
