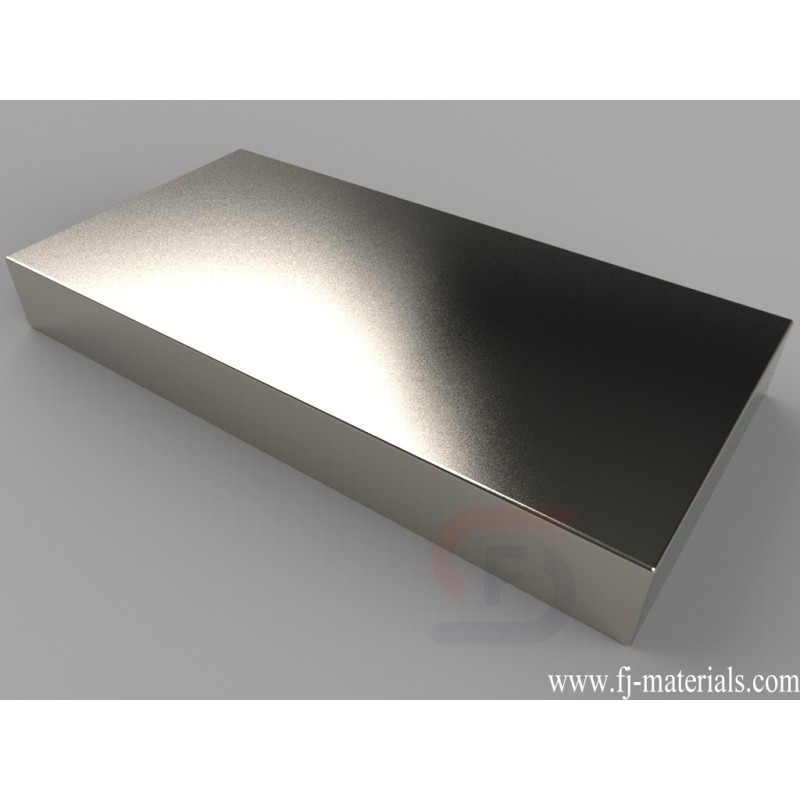

4 x 2 x 1/2 inch thick Block Magnets | BZX0Y08
BZX0Y08 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 158.70 lbs.
Yiwu Fenjiao E-commerce Firm supply BZX0Y08 Neodymium Block Magnets with high quality at competitive price.
BZX0Y08 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 158.70 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZX0Y08
Data sheet
- Item Number
- BZX0Y08
- Material
- NdFeB
- Grade
- N42
- Size
- 4" x 2" x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 17.34 oz. (491.7 g)
- Pull Force
- 158.70 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- H. 50.8-254mm
- Width
- G. 25.4-50.8mm
BZX0Y08 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 158.70 lbs.
