1/4 x 1/4 x 1/4 (- 1/16 inch hole) Block Magnets | B444-1

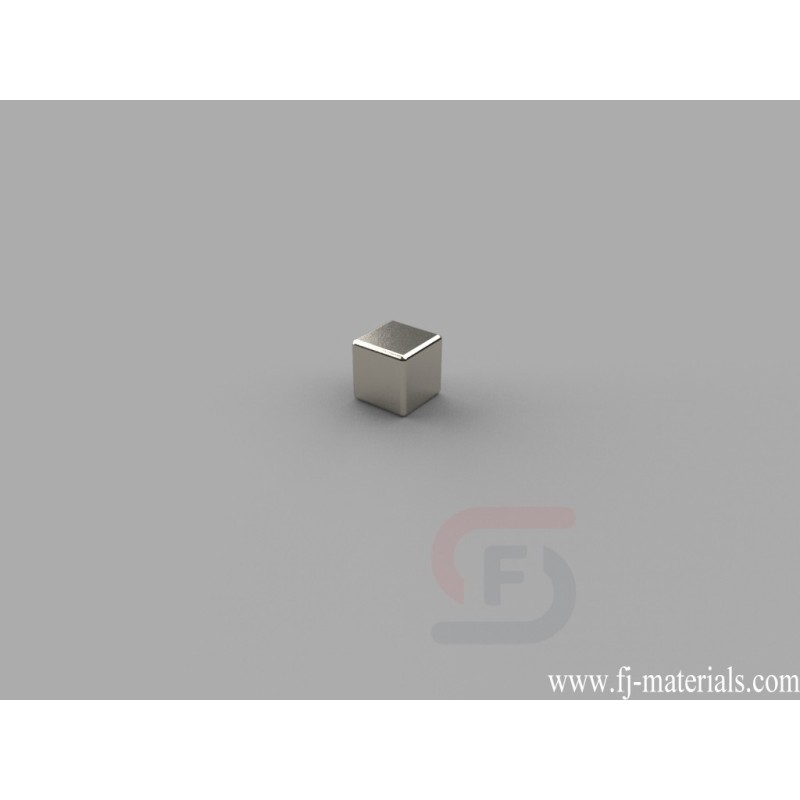

B444-1 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1/4" (- 1/16" hole), Thru Thickness magnetized. Pull force is approximately 4.05 lbs.
Yiwu Fenjiao E-commerce Firm supply B444-1 Neodymium Block Magnets with high quality at competitive price.
B444-1 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1/4" (- 1/16" hole), Thru Thickness magnetized. Pull force is approximately 4.05 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B444-1
Data sheet
- Item Number
- B444-1
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4" x 1/4" x 1/4" (- 1/16" hole)
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.068 oz (1.92 g)
- Pull Force
- 4.05 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- B. 3.18-6.35mm
- Width
- B. 3.18-6.35mm
B444-1 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1/4" (- 1/16" hole), Thru Thickness magnetized. Pull force is approximately 4.05 lbs.
