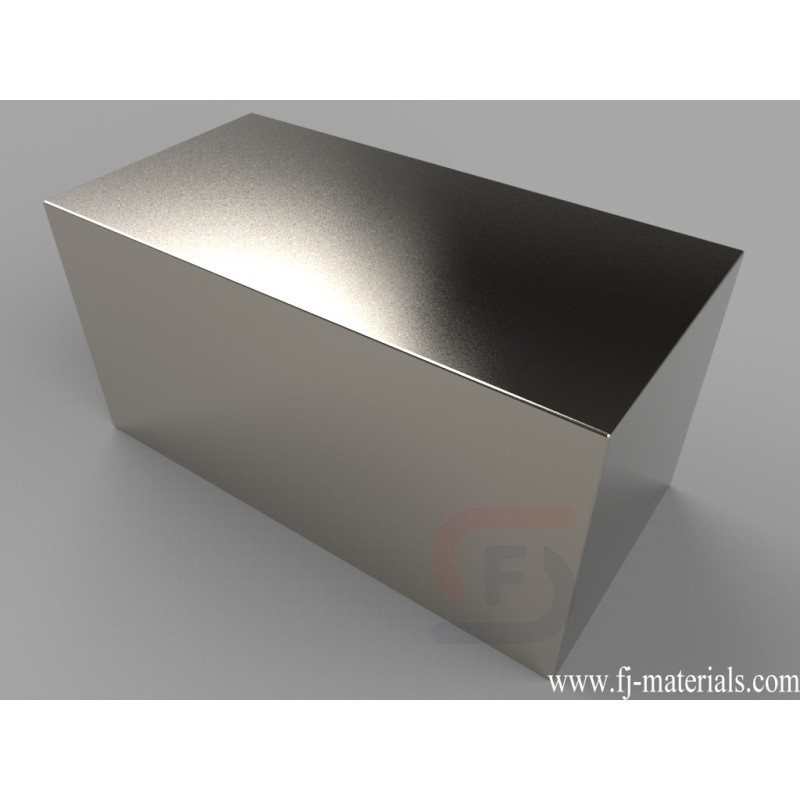

4 x 2 x 2 inch thick Block Magnets | BZX0Y0Y0-N52
BZX0Y0Y0-N52 Neodymium Magnets, 4" x 2" x 2" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" x 2" x 2" thick, Thru Thickness magnetized. Pull force is approximately 759.7 lbs.
BZX0Y0Y0-N52 Neodymium Magnets is made from high perfermance N52 NdFeB. The dimesion is 4" x 2" x 2" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 759.7 lbs. Magnetization direction: Through Thickness
BZX0Y0Y0-N52 Neodymium Magnets, 4" x 2" x 2" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" x 2" x 2" thick, Thru Thickness magnetized. Pull force is approximately 759.7 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZX0Y0Y0-N52
Data sheet
- Item Number
- BZX0Y0Y0-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 4" x 2" x 2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 69.4 oz. (1967.46 g)
- Pull Force
- 759.7 lbs
- Thickness
- G. 25.4-50.8mm
- Length
- H. 50.8-254mm
- Width
- G. 25.4-50.8mm
BZX0Y0Y0-N52 Neodymium Magnets, 4" x 2" x 2" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" x 2" x 2" thick, Thru Thickness magnetized. Pull force is approximately 759.7 lbs.
