4 x 3 x 1 inch thick Block Magnets | BZX0Z0X0-N52

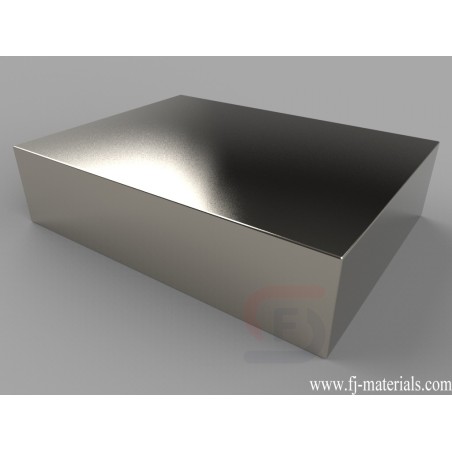

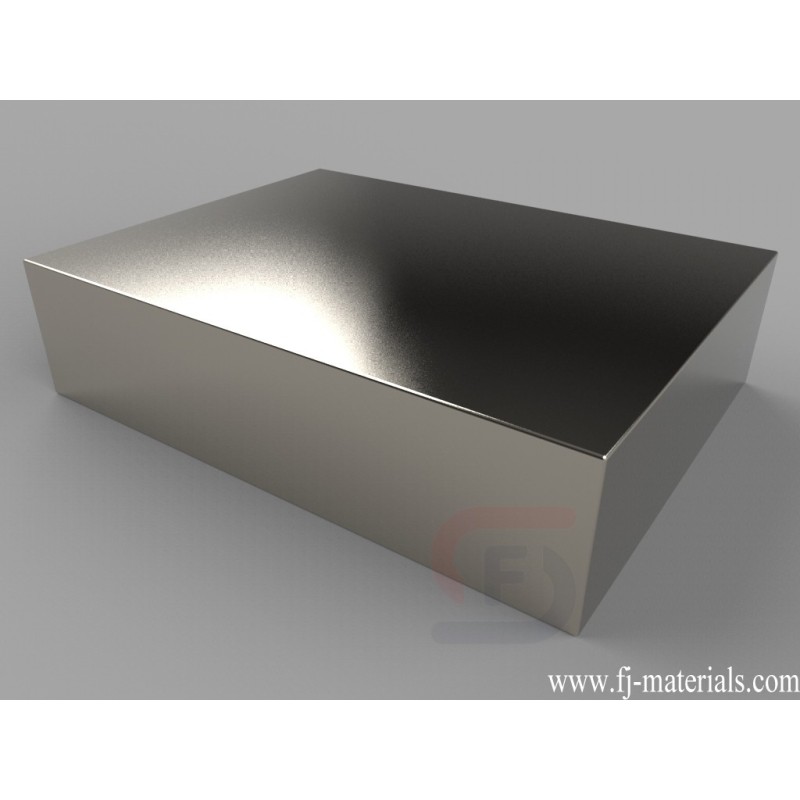

BZX0Z0X0-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" x 3" x 1" thick, Thru Thickness magnetized. Pull force is approximately 693.3 lbs.
Yiwu Fenjiao E-commerce Firm supply BZX0Z0X0-N52 Neodymium Block Magnets with high quality at competitive price.
BZX0Z0X0-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" x 3" x 1" thick, Thru Thickness magnetized. Pull force is approximately 693.3 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZX0Z0X0-N52
Data sheet
- Item Number
- BZX0Z0X0-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 4" x 3" x 1" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 52.03 oz. (1475 g)
- Pull Force
- 693.3 lbs
- Thickness
- F. 19.05-25.4mm
- Length
- H. 50.8-254mm
- Width
- H. 50.8-254mm
BZX0Z0X0-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 4" x 3" x 1" thick, Thru Thickness magnetized. Pull force is approximately 693.3 lbs.
