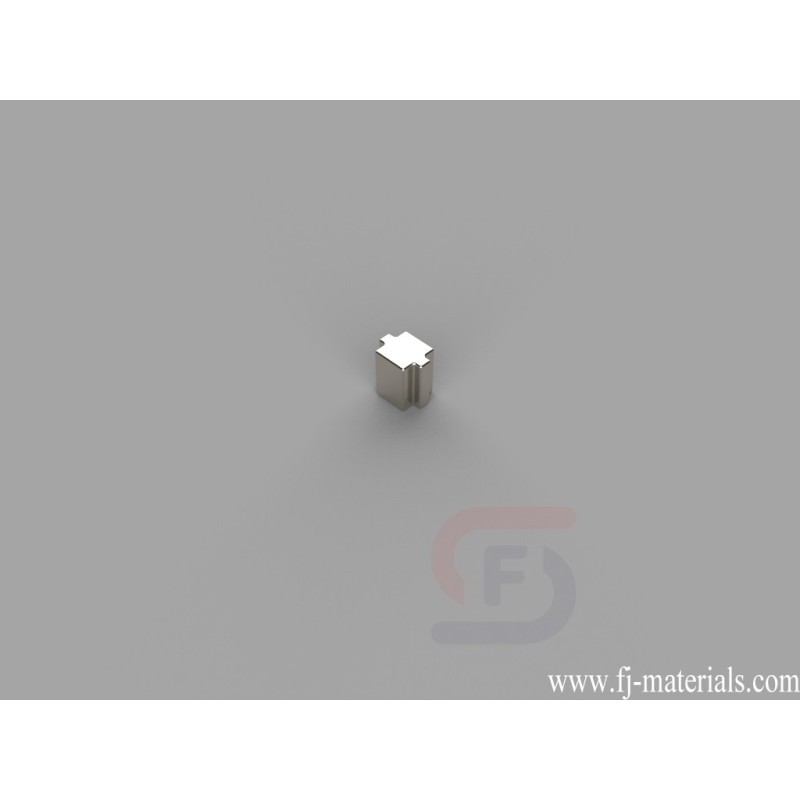

1/4 length x 1/4 width x 3/16 inch thick, with step OUT Block Magnets | SB443-OUT
SB443-OUT Neodymium Magnets, 1/4" length x 1/4" width x 3/16" thick, with step OUT is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" length x 1/4" width x 3/16" thick, with step OUT, Thru Thickness magnetized. Pull force is approximately 4.04 lbs.
SB443-OUT Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 1/4" length x 1/4" width x 3/16" thick, with step OUT, Ni-Cu-Ni (Nickel) coating. Pull force: 4.04 lbs. Magnetization direction: Through Thickness
SB443-OUT Neodymium Magnets, 1/4" length x 1/4" width x 3/16" thick, with step OUT is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" length x 1/4" width x 3/16" thick, with step OUT, Thru Thickness magnetized. Pull force is approximately 4.04 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
SB443-OUT
Data sheet
- Item Number
- SB443-OUT
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4" length x 1/4" width x 3/16" thick with step OUT
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.055 oz. (1.57 g)
- Pull Force
- 4.04 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- B. 3.18-6.35mm
- Width
- B. 3.18-6.35mm
SB443-OUT Neodymium Magnets, 1/4" length x 1/4" width x 3/16" thick, with step OUT is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" length x 1/4" width x 3/16" thick, with step OUT, Thru Thickness magnetized. Pull force is approximately 4.04 lbs.
