3/8 length x 3/8 width x 1/4 inch thick, with step IN Block Magnets | SB664-IN

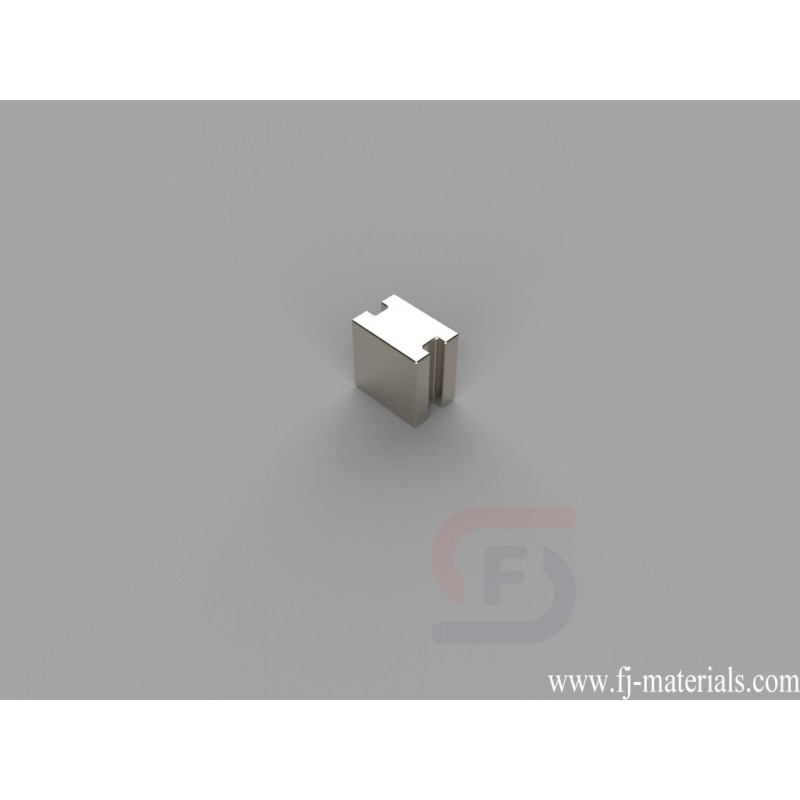

SB664-IN Neodymium Magnets, 3/8" length x 3/8" width x 1/4" thick, with step IN is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" length x 3/8" width x 1/4" thick, with step IN, Thru Thickness magnetized. Pull force is approximately 7.62 lbs.
SB664-IN Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 3/8" length x 3/8" width x 1/4" thick, with step IN, Ni-Cu-Ni (Nickel) coating. Pull force: 7.62 lbs. Magnetization direction: Through Thickness
SB664-IN Neodymium Magnets, 3/8" length x 3/8" width x 1/4" thick, with step IN is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" length x 3/8" width x 1/4" thick, with step IN, Thru Thickness magnetized. Pull force is approximately 7.62 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
SB664-IN
Data sheet
- Item Number
- SB664-IN
- Material
- NdFeB
- Grade
- N42
- Size
- 3/8" length x 3/8" width x 1/4" thick with step IN
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.138 oz. (3.92 g)
- Pull Force
- 7.62 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- C. 6.35-9.53mm
- Width
- C. 6.35-9.53mm
SB664-IN Neodymium Magnets, 3/8" length x 3/8" width x 1/4" thick, with step IN is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" length x 3/8" width x 1/4" thick, with step IN, Thru Thickness magnetized. Pull force is approximately 7.62 lbs.
