1/2 length x 1 width x 1/4 inch thick, with step OUT Block Magnets | SB8X04-OUT

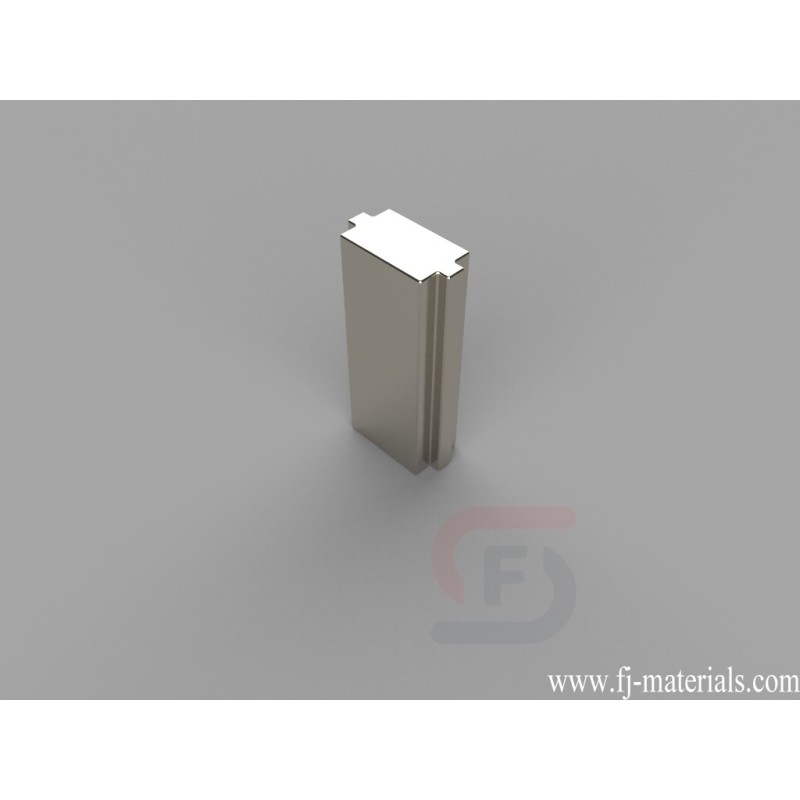

SB8X04-OUT Neodymium Magnets, 1/2" length x 1" width x 1/4" thick, with step OUT is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" length x 1" width x 1/4" thick, with step OUT, Thru Thickness magnetized. Pull force is approximately 21.81 lbs.
SB8X04-OUT Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 1/2" length x 1" width x 1/4" thick, with step OUT, Ni-Cu-Ni (Nickel) coating. Pull force: 21.81 lbs. Magnetization direction: Through Thickness
SB8X04-OUT Neodymium Magnets, 1/2" length x 1" width x 1/4" thick, with step OUT is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" length x 1" width x 1/4" thick, with step OUT, Thru Thickness magnetized. Pull force is approximately 21.81 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
SB8X04-OUT
Data sheet
- Item Number
- SB8X04-OUT
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" length x 1" width x 1/4" thick with step OUT
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.580 oz. (16.4 g)
- Pull Force
- 21.81 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- D. 9.53-12.7mm
- Width
- F. 19.05-25.4mm
SB8X04-OUT Neodymium Magnets, 1/2" length x 1" width x 1/4" thick, with step OUT is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" length x 1" width x 1/4" thick, with step OUT, Thru Thickness magnetized. Pull force is approximately 21.81 lbs.
