3/4 length x 1 1/2 width x 3/8 inch thick, with step OUT Block Magnets | SBCX86-OUT

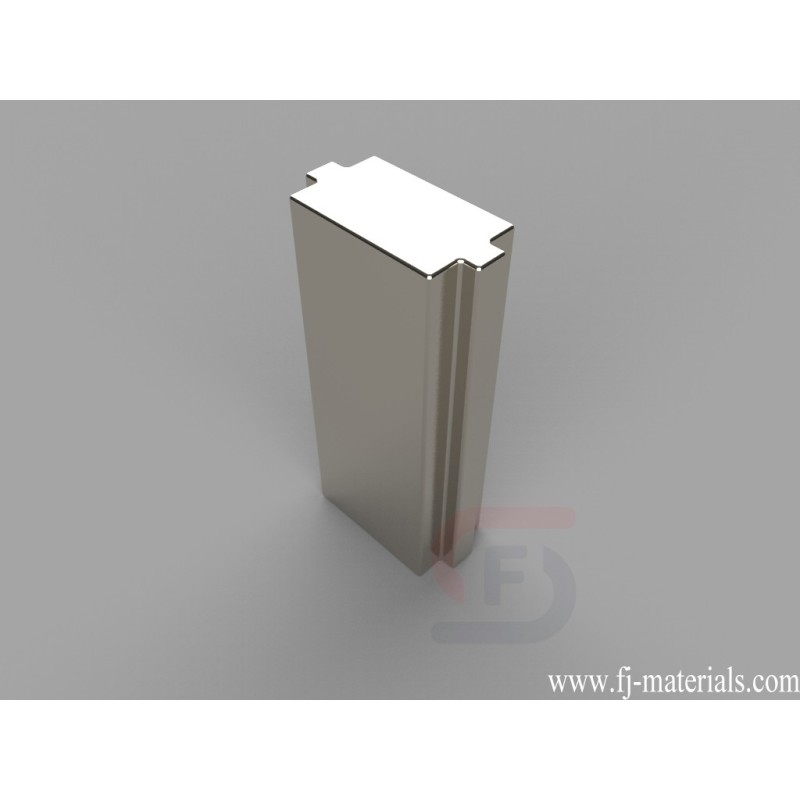

SBCX86-OUT Neodymium Magnets, 3/4" length x 1 1/2" width x 3/8" thick, with step OUT is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" length x 1 1/2" width x 3/8" thick, with step OUT, Thru Thickness magnetized. Pull force is approximately 48.63 lbs.
SBCX86-OUT Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 3/4" length x 1 1/2" width x 3/8" thick, with step OUT, Ni-Cu-Ni (Nickel) coating. Pull force: 48.63 lbs. Magnetization direction: Through Thickness
SBCX86-OUT Neodymium Magnets, 3/4" length x 1 1/2" width x 3/8" thick, with step OUT is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" length x 1 1/2" width x 3/8" thick, with step OUT, Thru Thickness magnetized. Pull force is approximately 48.63 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
SBCX86-OUT
Data sheet
- Item Number
- SBCX86-OUT
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" length x 1 1/2" width x 3/8" thick with step OUT
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.93 oz. (54.7 g)
- Pull Force
- 48.63 lbs
- Thickness
- C. 6.35-9.53mm
- Length
- E. 12.7-19.05mm
- Width
- G. 25.4-50.8mm
SBCX86-OUT Neodymium Magnets, 3/4" length x 1 1/2" width x 3/8" thick, with step OUT is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" length x 1 1/2" width x 3/8" thick, with step OUT, Thru Thickness magnetized. Pull force is approximately 48.63 lbs.
