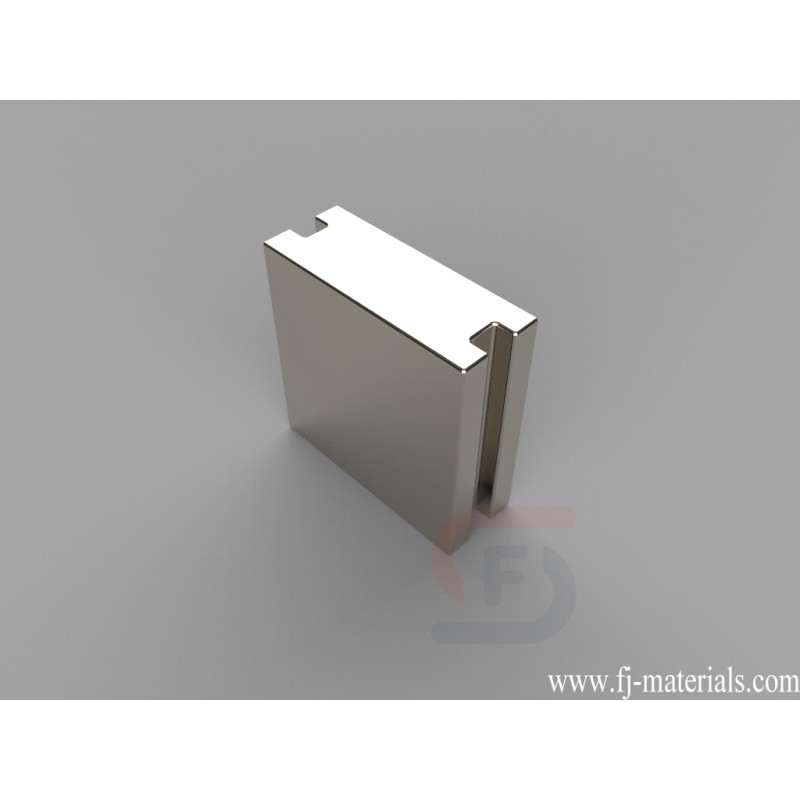

1 length x 1 width x 3/8 inch thick, with step IN Block Magnets | SBX0X06-IN
SBX0X06-IN Neodymium Magnets, 1" length x 1" width x 3/8" thick, with step IN is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" length x 1" width x 3/8" thick, with step IN, Thru Thickness magnetized. Pull force is approximately 41.44 lbs.
SBX0X06-IN Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 1" length x 1" width x 3/8" thick, with step IN, Ni-Cu-Ni (Nickel) coating. Pull force: 41.44 lbs. Magnetization direction: Through Thickness
SBX0X06-IN Neodymium Magnets, 1" length x 1" width x 3/8" thick, with step IN is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" length x 1" width x 3/8" thick, with step IN, Thru Thickness magnetized. Pull force is approximately 41.44 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
SBX0X06-IN
Data sheet
- Item Number
- SBX0X06-IN
- Material
- NdFeB
- Grade
- N42
- Size
- 1" length x 1" width x 3/8" thick with step IN
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.56 oz. (44.2 g)
- Pull Force
- 41.44 lbs
- Thickness
- C. 6.35-9.53mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
SBX0X06-IN Neodymium Magnets, 1" length x 1" width x 3/8" thick, with step IN is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" length x 1" width x 3/8" thick, with step IN, Thru Thickness magnetized. Pull force is approximately 41.44 lbs.
