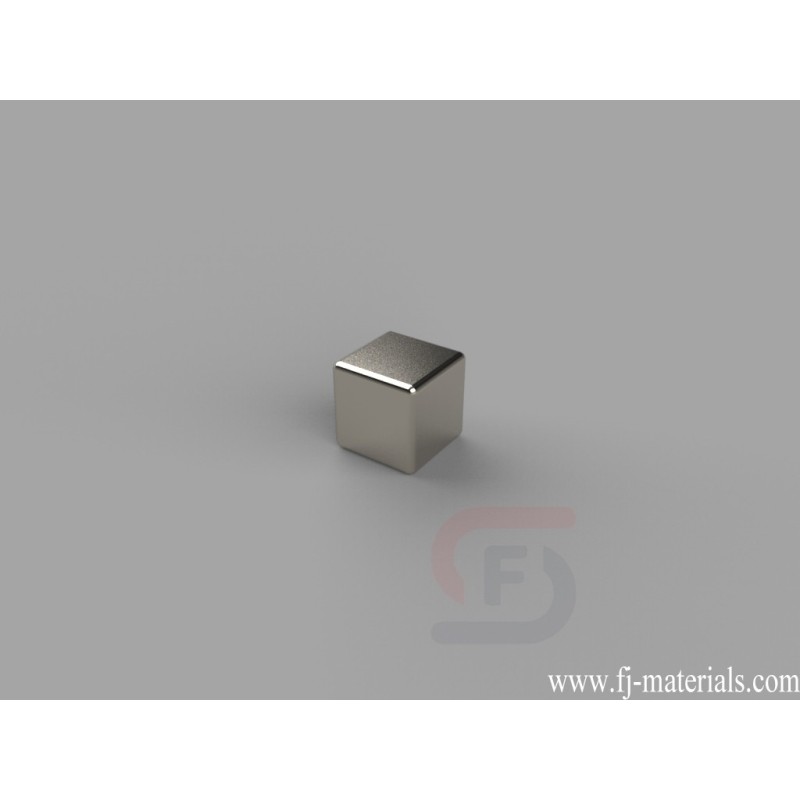

1/4 x 1/4 x 1/4 inch thick Block Magnets | B444
B444 Neodymium Magnets, 1/4" x 1/4" x 1/4" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 4.25 lbs.
B444 Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 1/4" x 1/4" x 1/4" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.25 lbs. Magnetization direction: Through Thickness
B444 Neodymium Magnets, 1/4" x 1/4" x 1/4" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 4.25 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B444
Data sheet
- Item Number
- B444
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4" x 1/4" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.0677 oz. (1.92 g)
- Pull Force
- 4.25 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- B. 3.18-6.35mm
- Width
- B. 3.18-6.35mm
B444 Neodymium Magnets, 1/4" x 1/4" x 1/4" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 4.25 lbs.
