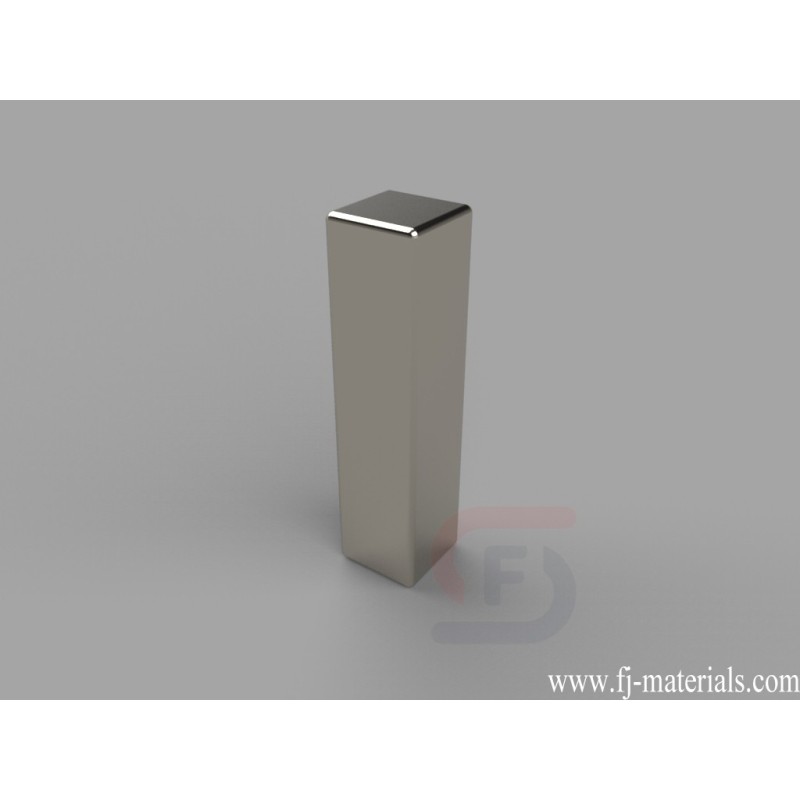

1/4 x 1/4 x 1 inch thick Block Magnets | B44X0-N52

B44X0-N52 Neodymium Magnets, 1/4" x 1/4" x 1" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1" thick, Thru Thickness magnetized. Pull force is approximately 6.69 lbs.

B44X0-N52 Neodymium Magnets is made from high perfermance N52 NdFeB. The dimesion is 1/4" x 1/4" x 1" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 6.69 lbs. Magnetization direction: Through Thickness

B44X0-N52 Neodymium Magnets, 1/4" x 1/4" x 1" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 1" thick, Thru Thickness magnetized. Pull force is approximately 6.69 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B44X0-N52

Data sheet

Item Number
B44X0-N52
Material
NdFeB
Grade
N52
Size
1/4" x 1/4" x 1" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.271 oz. (7.68 g)
Pull Force
6.69 lbs
Thickness
F. 19.05-25.4mm
Length
B. 3.18-6.35mm
Width
B. 3.18-6.35mm
