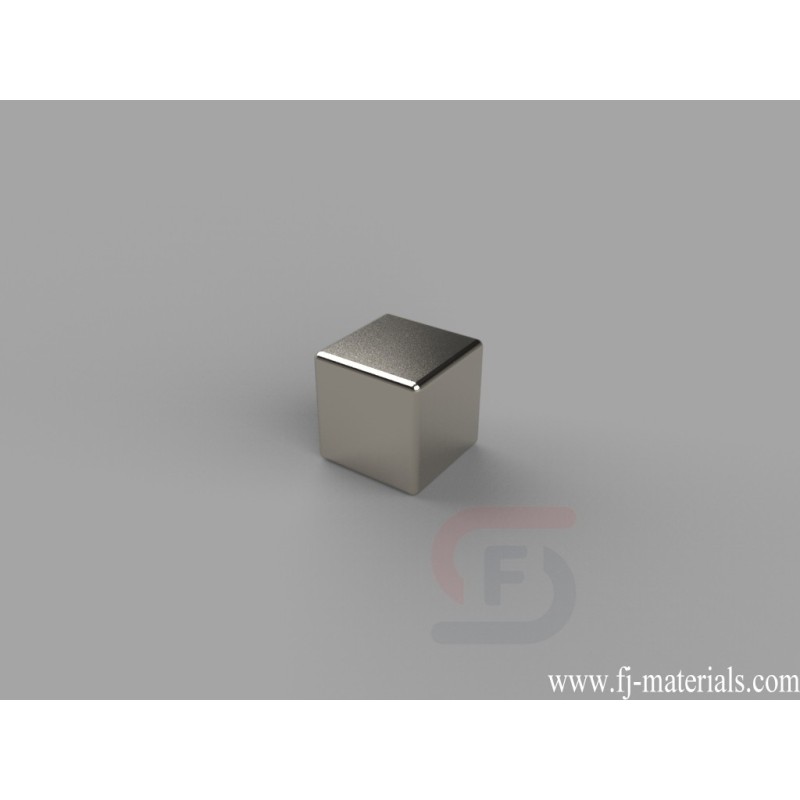

5/16 x 5/16 x 5/16 inch thick Block Magnets | B555
B555 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" x 5/16" x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 6.70 lbs.
Yiwu Fenjiao E-commerce Firm supply B555 Neodymium Block Magnets with high quality at competitive price.
B555 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" x 5/16" x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 6.70 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B555
Data sheet
- Item Number
- B555
- Material
- NdFeB
- Grade
- N42
- Size
- 5/16" x 5/16" x 5/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.132 oz. (3.75 g)
- Pull Force
- 6.70 lbs
- Thickness
- C. 6.35-9.53mm
- Length
- C. 6.35-9.53mm
- Width
- C. 6.35-9.53mm
B555 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" x 5/16" x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 6.70 lbs.
