1/8 x 1/8 x 1/16 inch thick Block Magnets | B221

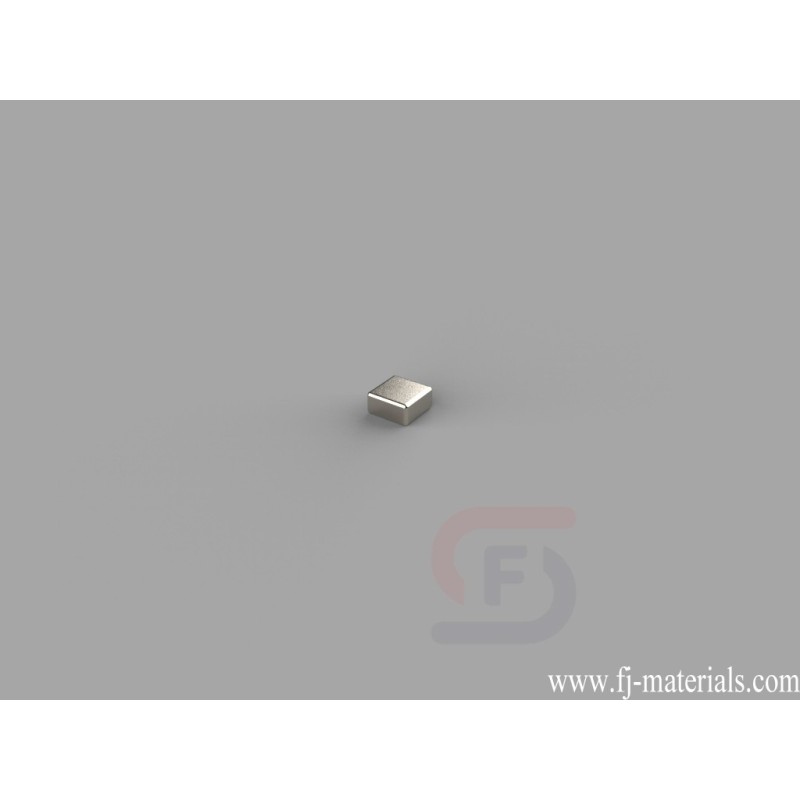

B221 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/8" x 1/8" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 0.53 lbs.
Yiwu Fenjiao E-commerce Firm supply B221 Neodymium Block Magnets with high quality at competitive price.
B221 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/8" x 1/8" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 0.53 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B221
Data sheet
- Item Number
- B221
- Material
- NdFeB
- Grade
- N42
- Size
- 1/8" x 1/8" x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.00423 oz. (0.120 g)
- Pull Force
- 0.53 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- A. 0.00-3.18mm
- Width
- A. 0.00-3.18mm
B221 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/8" x 1/8" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 0.53 lbs.
