3/8 x 3/8 x 1/4 inch thick Block Magnets | B664

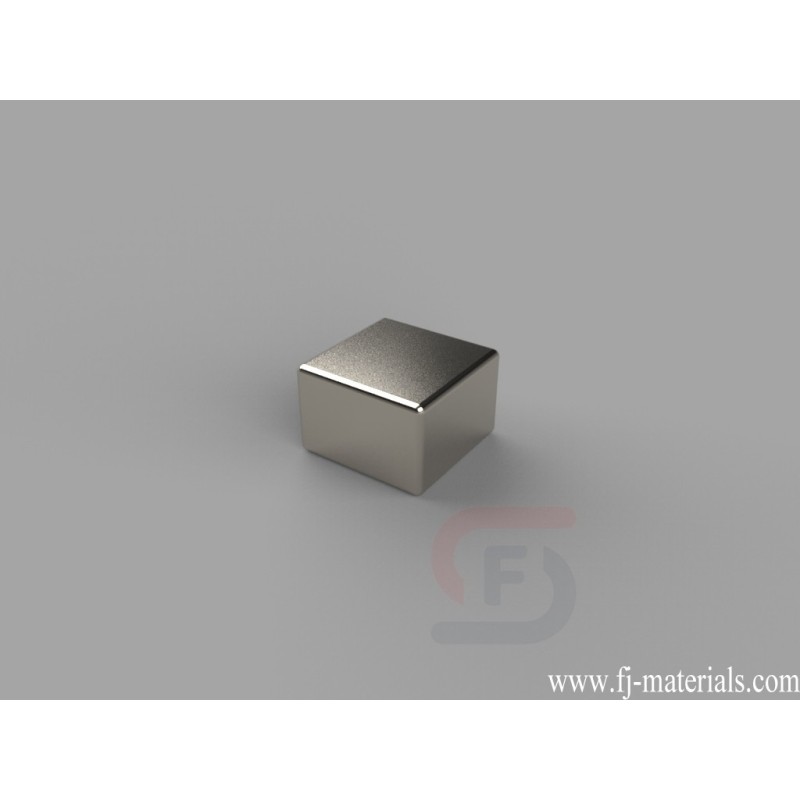

B664 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" x 3/8" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 8.41 lbs.
Yiwu Fenjiao E-commerce Firm supply B664 Neodymium Block Magnets with high quality at competitive price.
B664 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" x 3/8" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 8.41 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B664
Data sheet
- Item Number
- B664
- Material
- NdFeB
- Grade
- N42
- Size
- 3/8" x 3/8" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.152 oz. (4.32 g)
- Pull Force
- 8.41 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- C. 6.35-9.53mm
- Width
- C. 6.35-9.53mm
B664 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" x 3/8" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 8.41 lbs.
