7/16 x 7/16 x 7/16 inch thick Block Magnets | B777

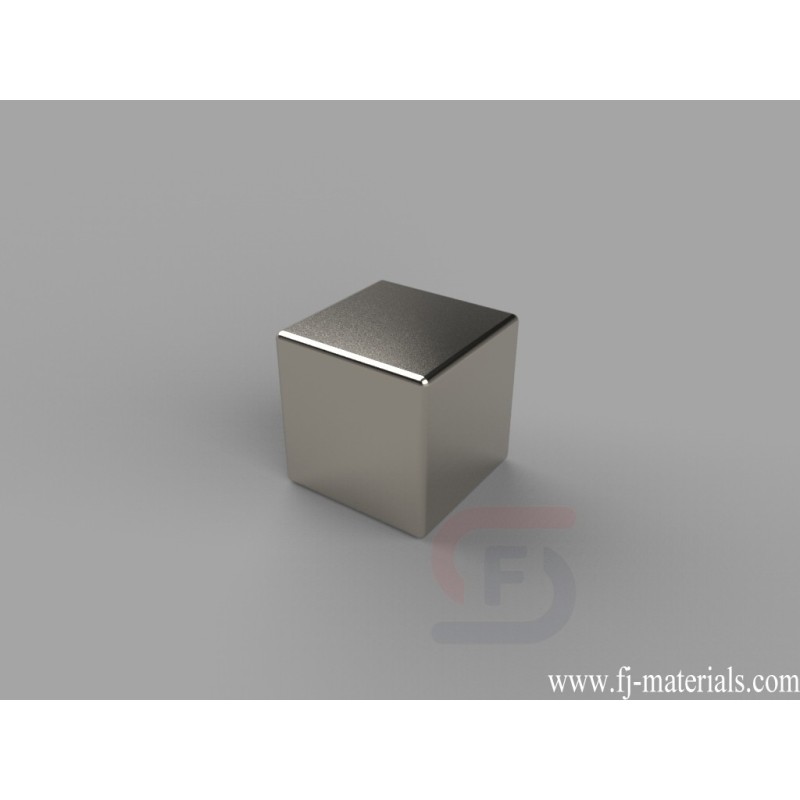

B777 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" x 7/16" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 13.72 lbs.
Yiwu Fenjiao E-commerce Firm supply B777 Neodymium Block Magnets with high quality at competitive price.
B777 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" x 7/16" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 13.72 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B777
Data sheet
- Item Number
- B777
- Material
- NdFeB
- Grade
- N42
- Size
- 7/16" x 7/16" x 7/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.363 oz. (10.29 g)
- Pull Force
- 13.72 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- D. 9.53-12.7mm
- Width
- D. 9.53-12.7mm
B777 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" x 7/16" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 13.72 lbs.
