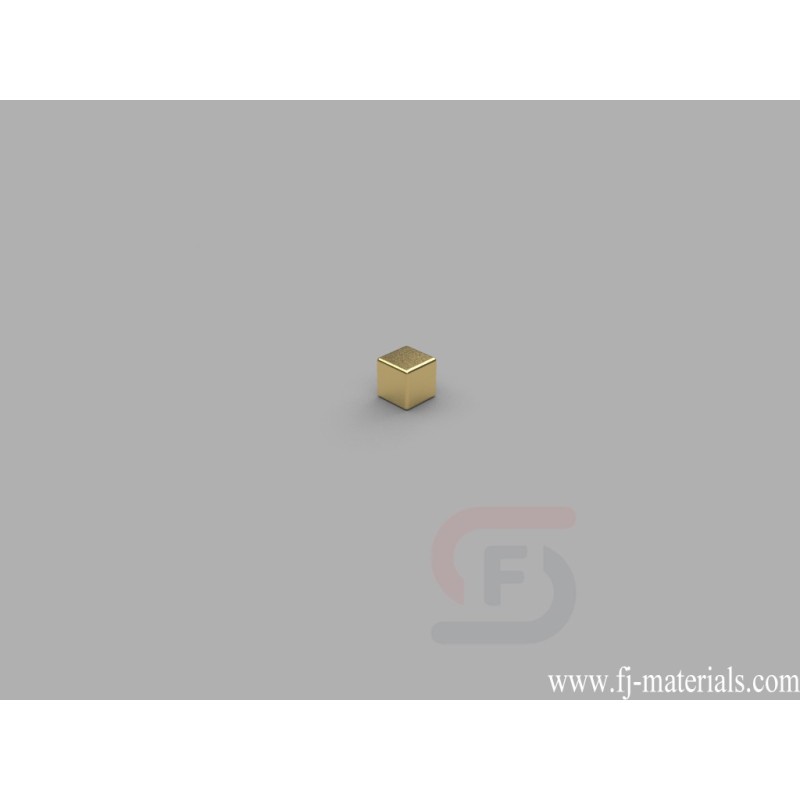

1/8 x 1/8 x 1/8 inch thick Block Magnets | B222G-N52
B222G-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Gold Plated. The dimension is 1/8" x 1/8" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 1.06 lbs.
Yiwu Fenjiao E-commerce Firm supply B222G-N52 Neodymium Block Magnets with high quality at competitive price.
B222G-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Gold Plated. The dimension is 1/8" x 1/8" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 1.06 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B222G-N52
Data sheet
- Item Number
- B222G-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 1/8" x 1/8" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Gold Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.00847 oz. (0.240 g)
- Pull Force
- 1.06 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- A. 0.00-3.18mm
- Width
- A. 0.00-3.18mm
B222G-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Gold Plated. The dimension is 1/8" x 1/8" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 1.06 lbs.
