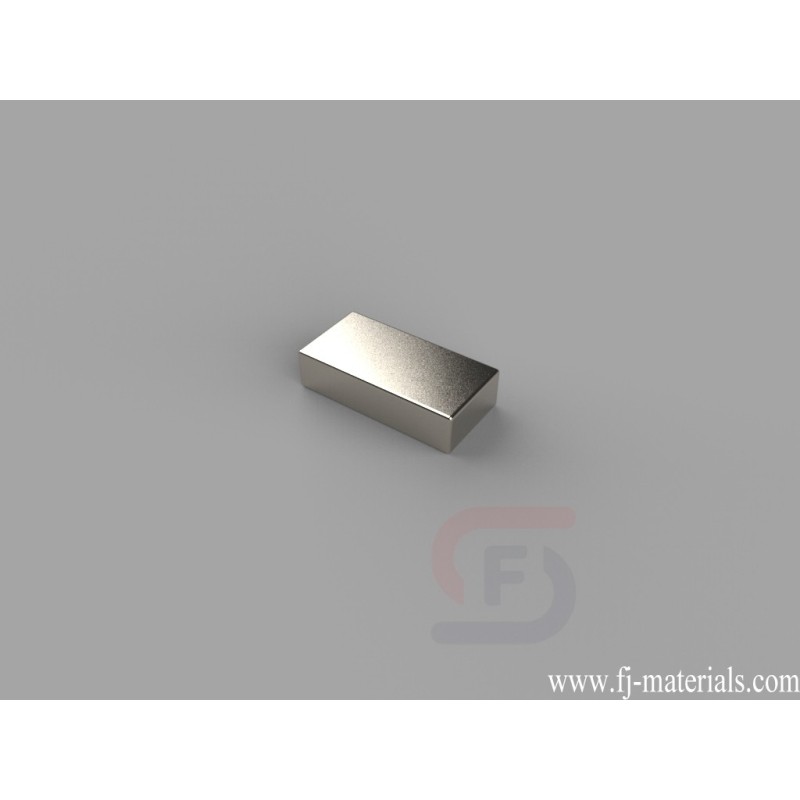

1/2 x 1/4 x 1/8 inch thick Block Magnets | B842-N52
B842-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 5.94 lbs.
Yiwu Fenjiao E-commerce Firm supply B842-N52 Neodymium Block Magnets with high quality at competitive price.
B842-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 5.94 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B842-N52
Data sheet
- Item Number
- B842-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 1/2" x 1/4" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.0678 oz. (1.92 g)
- Pull Force
- 5.94 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- D. 9.53-12.7mm
- Width
- B. 3.18-6.35mm
B842-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 5.94 lbs.
