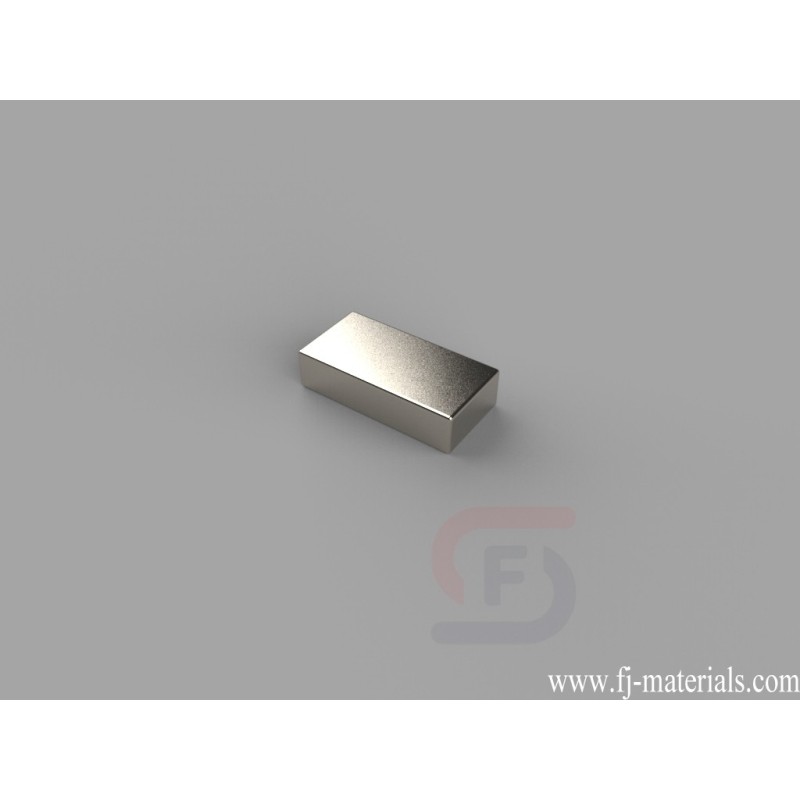

1/2 x 1/4 x 1/8 inch thick Block Magnets | B842SH

B842SH Neodymium Magnets, 1/2" x 1/4" x 1/8" thick is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 1/2" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 4.80 lbs.

B842SH Neodymium Block / Bar Magnets is made from high perfermance N42SH NdFeB. The dimesion is 1/2" x 1/4" x 1/8" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.80 lbs. Magnetization direction: Through Thickness

B842SH Neodymium Magnets, 1/2" x 1/4" x 1/8" thick is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 1/2" x 1/4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 4.80 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B842SH

Data sheet

Item Number
B842SH
Material
NdFeB
Grade
N42SH
Size
1/2" x 1/4" x 1/8" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.0678 oz. (1.92 g)
Pull Force
4.80 lbs
Thickness
A. 0.00-3.18mm
Length
D. 9.53-12.7mm
Width
B. 3.18-6.35mm
