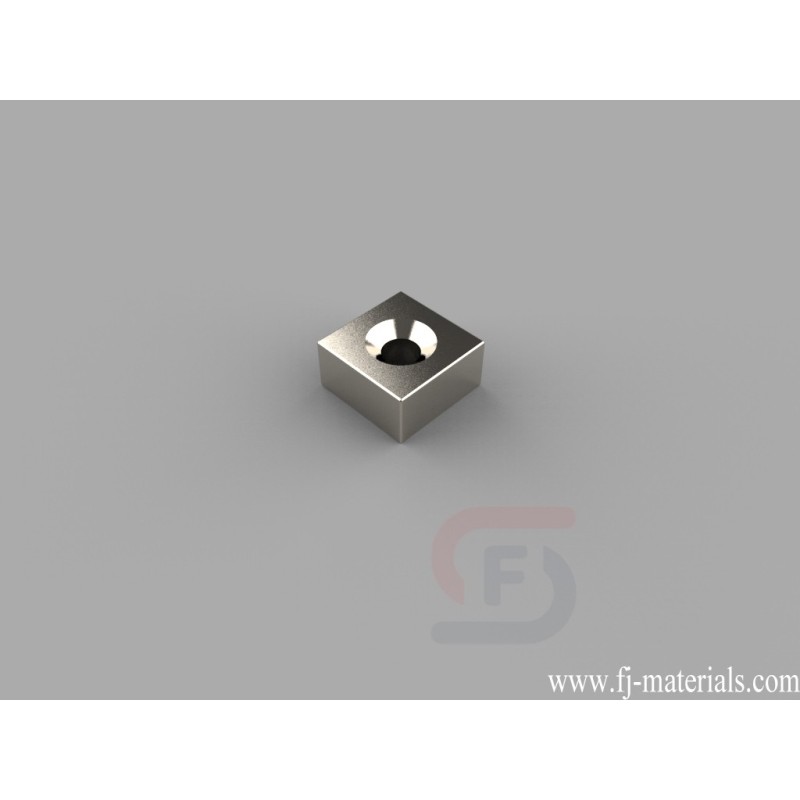

1/2 x 1/4 x 1/2 inch thick w/ hole to accept a No. 6 screw Block Magnets | B848CS
B848CS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 1/4" x 1/2" thick w/ hole to accept a #6 screw, Thru Thickness magnetized. Pull force is approximately 8.94 lbs.
Yiwu Fenjiao E-commerce Firm supply B848CS Neodymium Block Magnets with high quality at competitive price.
B848CS Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 1/4" x 1/2" thick w/ hole to accept a #6 screw, Thru Thickness magnetized. Pull force is approximately 8.94 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B848CS
Data sheet
- Item Number
- B848CS
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" x 1/4" x 1/2" thick w/ hole to accept a No. 6 screw
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.24 oz. (6.8 g)
- Pull Force
- 8.94 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- D. 9.53-12.7mm
- Width
- B. 3.18-6.35mm
