1/2 x 1/4 x 1/10 inch thick Block Magnets | B84H1

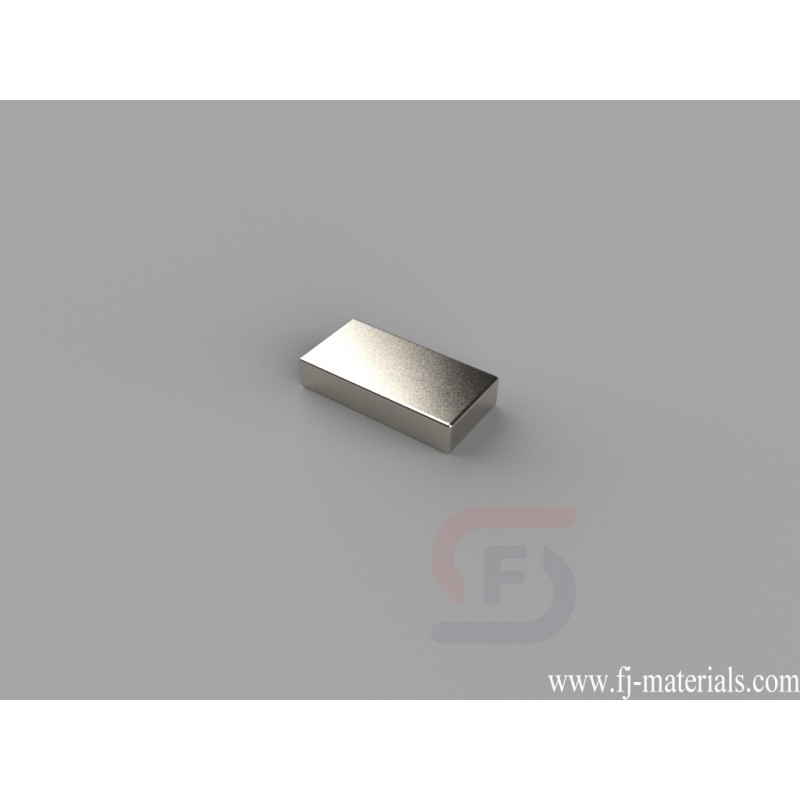

B84H1 Neodymium Magnets, 1/2" x 1/4" x 1/10" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 1/4" x 1/10" thick, Thru Thickness magnetized. Pull force is approximately 3.40 lbs.

B84H1 Neodymium Magnets is made from high perfermance N42 NdFeB. The dimesion is 1/2" x 1/4" x 1/10" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 3.40 lbs. Magnetization direction: Through Thickness

B84H1 Neodymium Magnets, 1/2" x 1/4" x 1/10" thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 1/4" x 1/10" thick, Thru Thickness magnetized. Pull force is approximately 3.40 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B84H1

Data sheet

Item Number
B84H1
Material
NdFeB
Grade
N42
Size
1/2" x 1/4" x 1/10" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.0542oz. (1.537 g)
Pull Force
3.40 lbs
Thickness
A. 0.00-3.18mm
Length
D. 9.53-12.7mm
Width
B. 3.18-6.35mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
