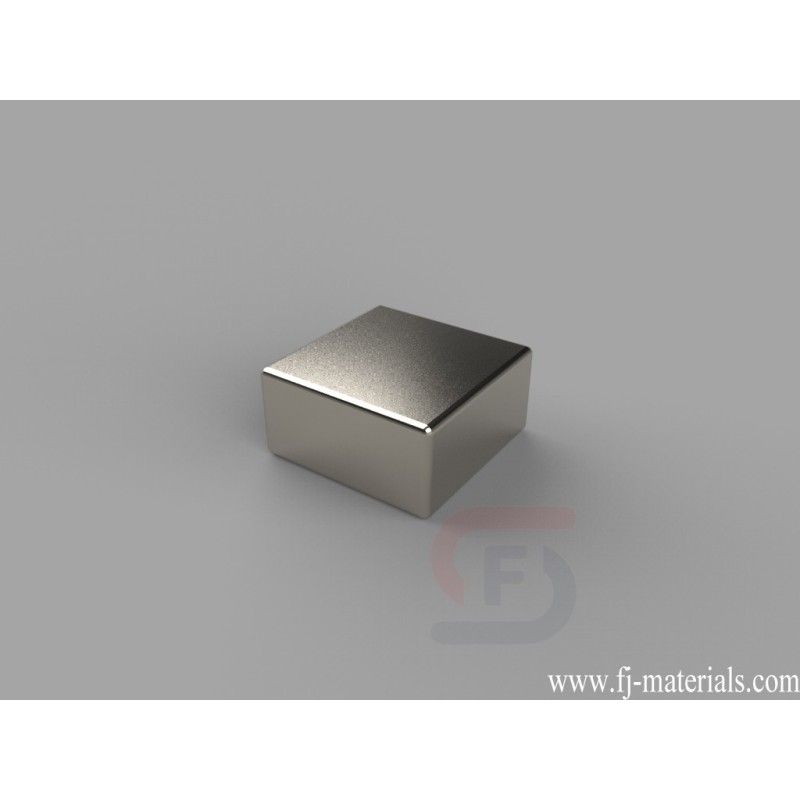

1/2 x 1/2 x 1/4 inch thick Block Magnets | B884-N52

B884-N52 Neodymium Magnets, 1/2" x 1/2" x 1/4" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 16.28 lbs.

B884-N52 Neodymium Magnets is made from high perfermance N52 NdFeB. The dimesion is 1/2" x 1/2" x 1/4" thick, Ni-Cu-Ni (Nickel) coating. Pull force: 16.28 lbs. Magnetization direction: Through Thickness

B884-N52 Neodymium Magnets, 1/2" x 1/2" x 1/4" thick is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 16.28 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B884-N52

Data sheet

Item Number
B884-N52
Material
NdFeB
Grade
N52
Size
1/2" x 1/2" x 1/4" thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.271 oz. (7.68 g)
Pull Force
16.28 lbs
Thickness
B. 3.18-6.35mm
Length
D. 9.53-12.7mm
Width
D. 9.53-12.7mm
