1/2 x 1/2 x 1/2 (- 0.127 inch hole) Hole parallel to magnetization direction Block Magnets | B888-2PA-N52

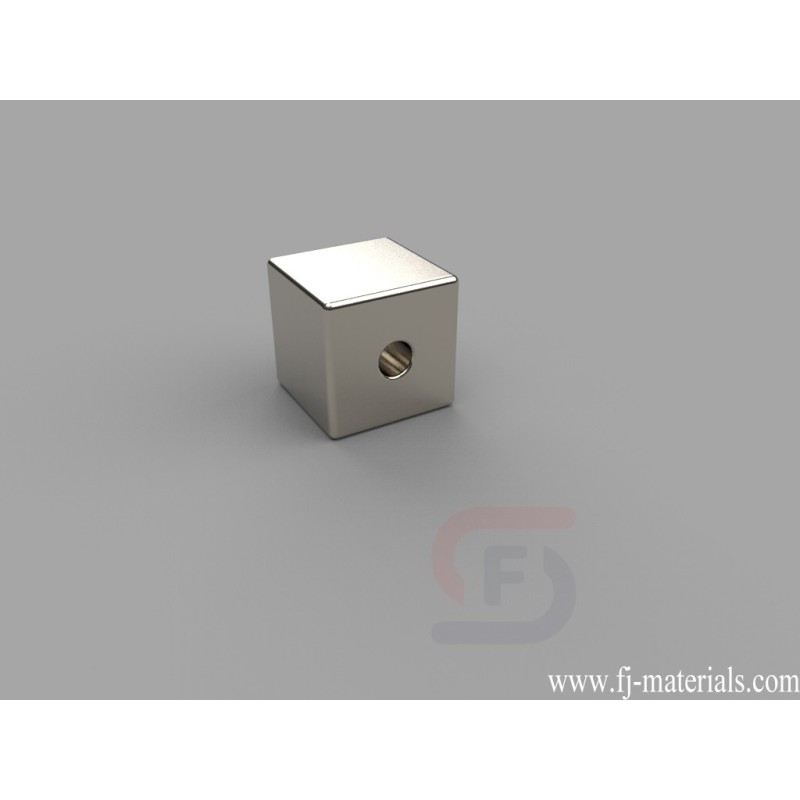

B888-2PA-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" x 1/2" x 1/2" (- 0.127" hole) Hole parallel to magnetization direction, Thru Thickness magnetized. Pull force is approximately 21.32 lbs.
Yiwu Fenjiao E-commerce Firm supply B888-2PA-N52 Neodymium Block Magnets with high quality at competitive price.
B888-2PA-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" x 1/2" x 1/2" (- 0.127" hole) Hole parallel to magnetization direction, Thru Thickness magnetized. Pull force is approximately 21.32 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B888-2PA-N52
Data sheet
- Item Number
- B888-2PA-N52
- Material
- NdFeB
- Grade
- N52
- Size
- 1/2" x 1/2" x 1/2" (- 0.127" hole) Hole parallel to magnetization direction
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.482 oz. (13.67 g)
- Pull Force
- 21.32 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- D. 9.53-12.7mm
- Width
- D. 9.53-12.7mm
B888-2PA-N52 Neodymium Block Magnets is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1/2" x 1/2" x 1/2" (- 0.127" hole) Hole parallel to magnetization direction, Thru Thickness magnetized. Pull force is approximately 21.32 lbs.
