5/8 x 5/8 x 1/4 inch thick Block Magnets | BAA4

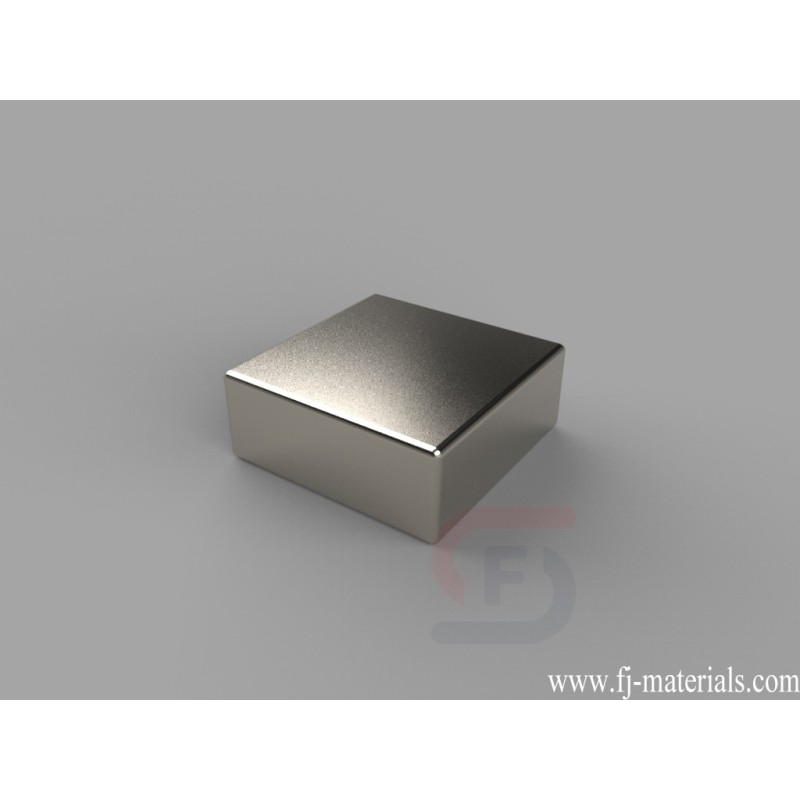

BAA4 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" x 5/8" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 17.56 lbs.
Yiwu Fenjiao E-commerce Firm supply BAA4 Neodymium Block Magnets with high quality at competitive price.
BAA4 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" x 5/8" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 17.56 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BAA4
Data sheet
- Item Number
- BAA4
- Material
- NdFeB
- Grade
- N42
- Size
- 5/8" x 5/8" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.423 oz. (12.0 g)
- Pull Force
- 17.56 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
BAA4 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" x 5/8" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 17.56 lbs.
