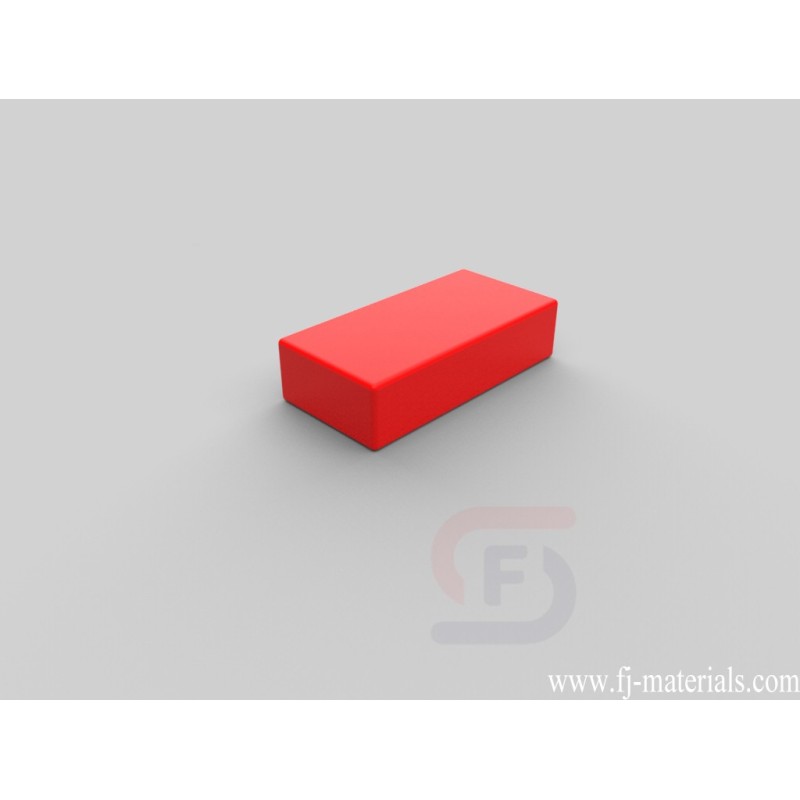

1 x 1/2 x 1/4 inch thick Plastic Coated Magnets | BX084PC-RED
BX084PC-RED Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 1" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 8.26 lbs.
Yiwu Fenjiao E-commerce Firm supply BX084PC-RED Plastic/Rubber Coated with high quality at competitive price.
BX084PC-RED Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 1" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 8.26 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX084PC-RED
Data sheet
- Item Number
- BX084PC-RED
- Material
- NdFeB
- Grade
- N42
- Size
- 1" x 1/2" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Plastic Coated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.381 oz. (10.8 g)
- Pull Force
- 8.26 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- F. 19.05-25.4mm
- Width
- D. 9.53-12.7mm
BX084PC-RED Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 1" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 8.26 lbs.
